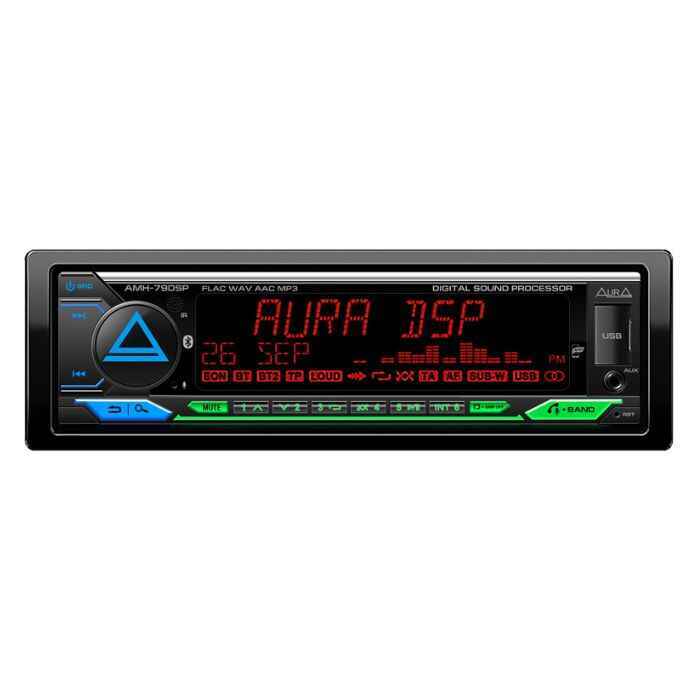

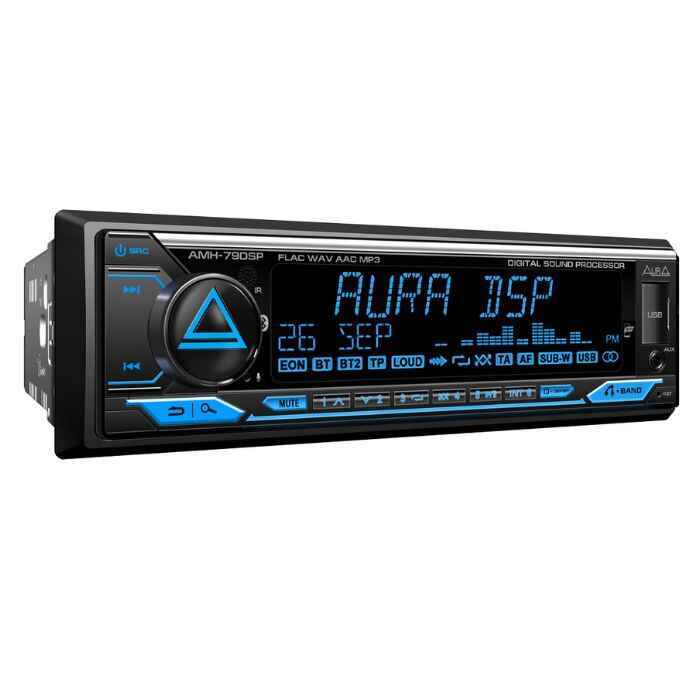

AMH-79DSP

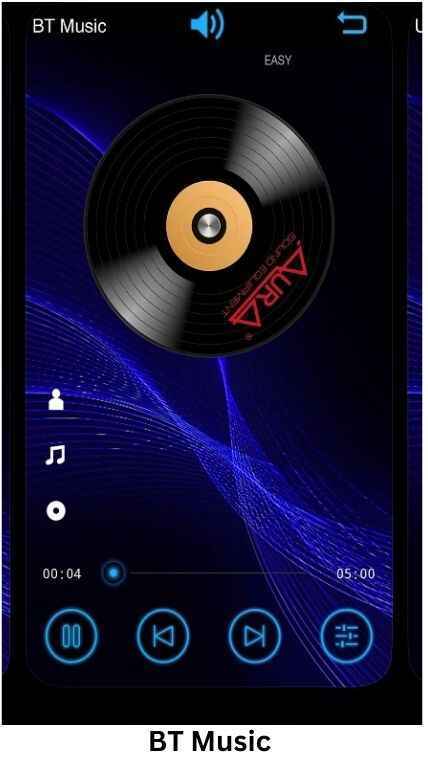

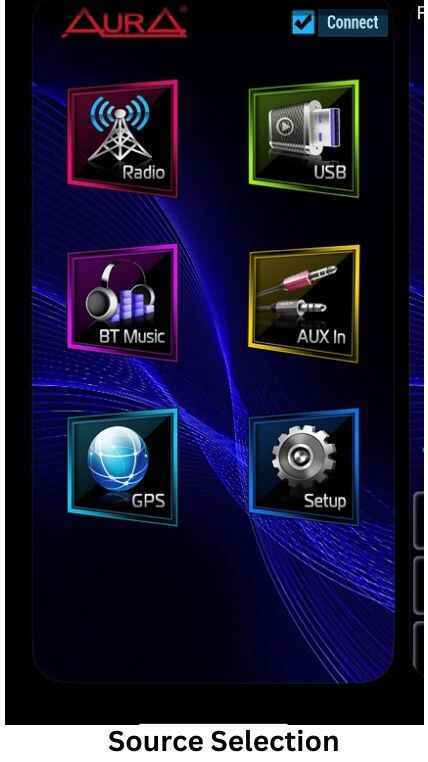

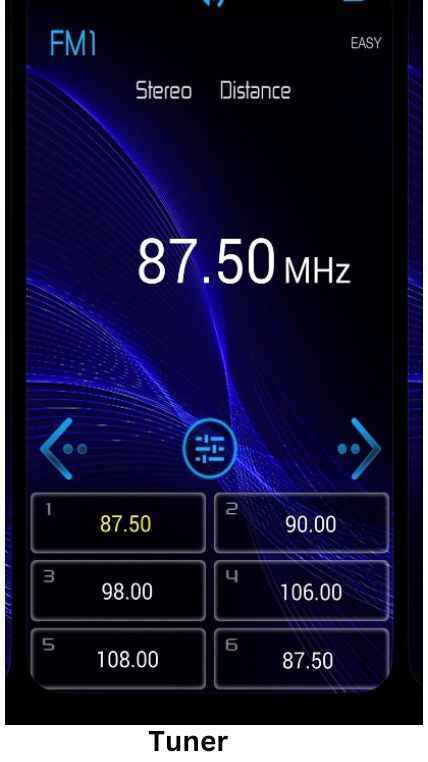

• Aura Audio app : The Headunit can be controlled from Aura Audio app. Source Selection, BT streaming, Tuner, Colour Illumination, fader/balance, EQ Setting, DTA(Digital Time Alignment), 2-Way cross over and 3-Way cross over are some of the setting which can be done from the app.

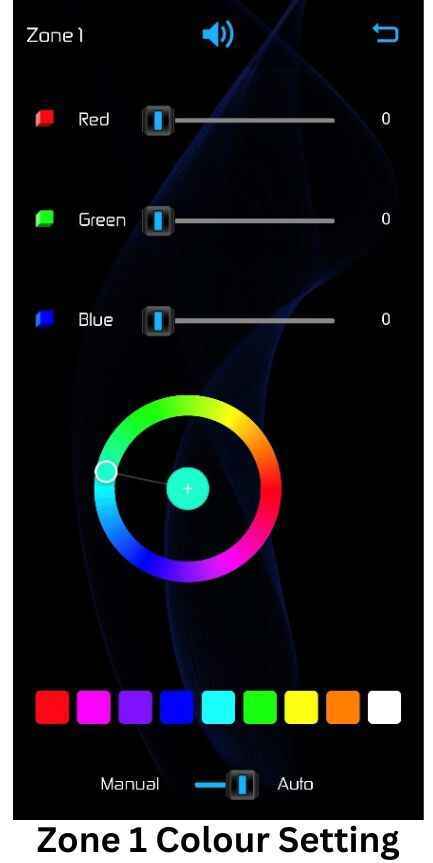

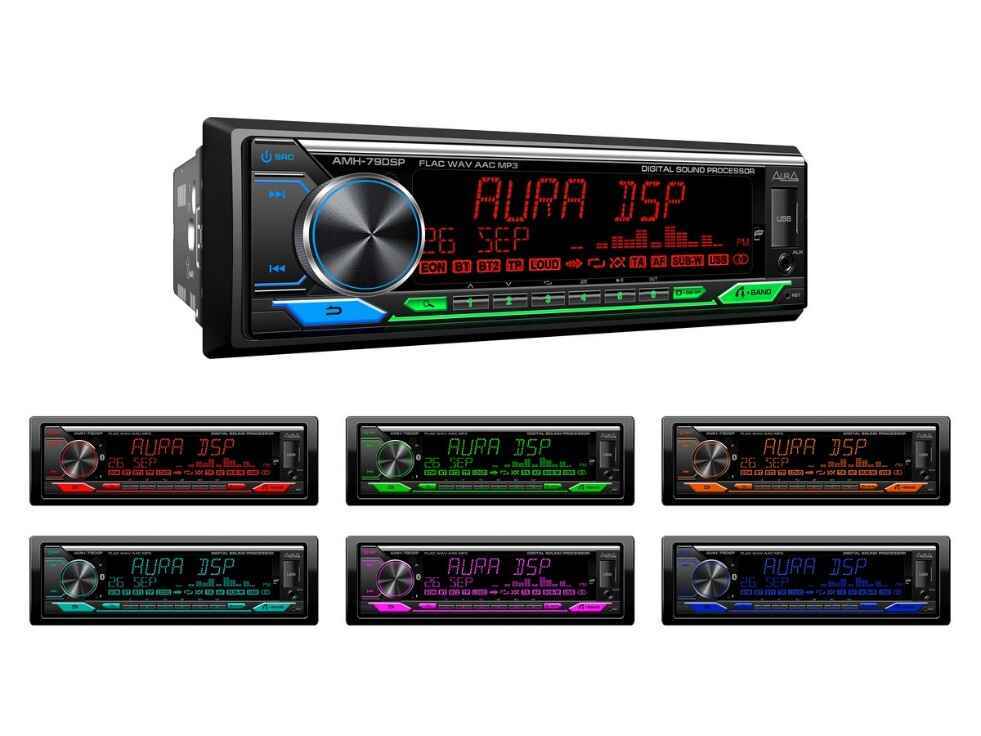

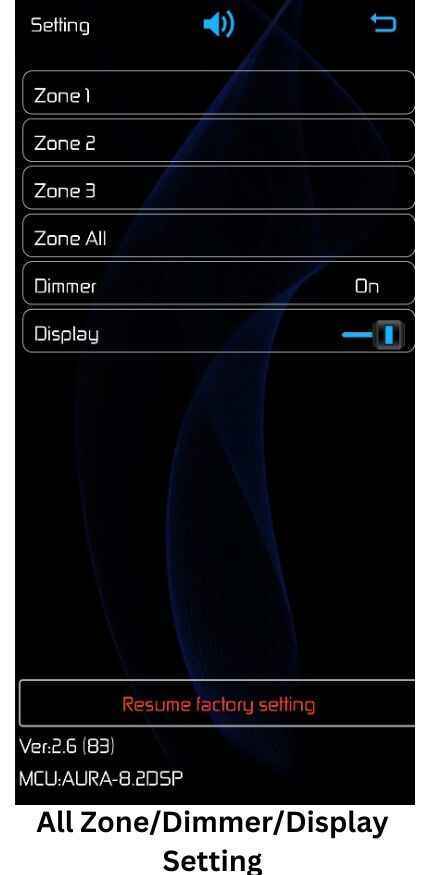

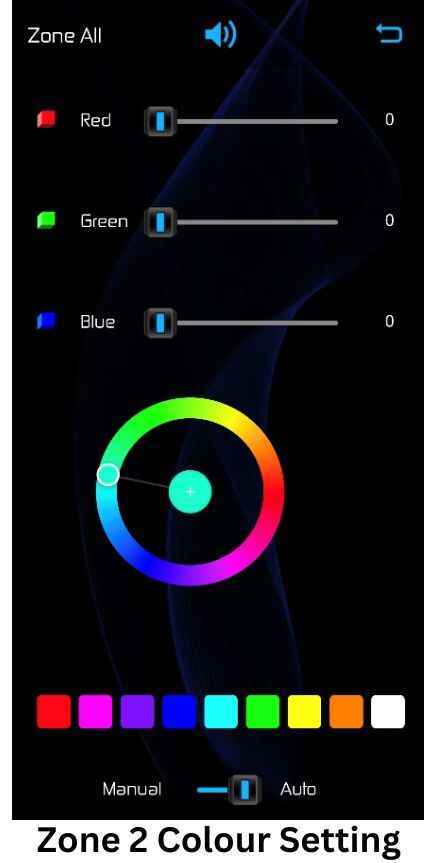

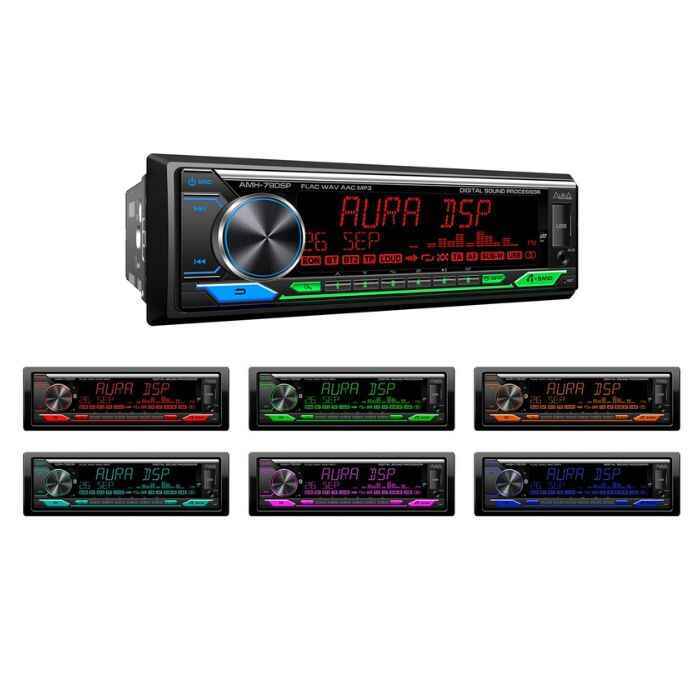

• Variable Colour Illumination :The Aura AMH-79DSP has 3-Zone Variable colour illumination. User can adjust the illumination colour as per his taste or dashboard display either from the head unit or through Aura app.

• Audio setting : The Aura AMH-79DSP boast is very High End Audio settings features required by professional installers to get the best sound from system set up using Amplifiers/speakers/subwoofers Etc. The Headunit has 24-Band Parametric EQ and with built in DSP, user can set frequencies as per 2-Way crossover or 3-way crossover set up. These settings can be done from the headunit or from Aura App.
• X-OVER:Setting filters of low and high frequencies (FNCh and FVH). The settings of this menu item will be different for configurations 2-WAY / 3-WAY!
• 2-WAY (Regular):
• Tweeter - high frequency setting
• FRQ - frequency selection: 1 / 1.6 / 2.5 / 3.15 / 4 /5 / 6.3 / 8 /10 / 12.5 kHz.
• GAIN LEFT - volume level (left channel), from -8 to 0 dB.
• GAIN RIGHT - volume level (right channel), from -8 to 0 db.
• Front HPF - FVF configuration (HPF) of the anterior speakers
• F-HPF FRQ - cut frequency: trous (off.) / 30 / 40/50 / 60 / 70 /80 /90 /100 /120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz.
• F-HPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.
• F-HPF GAIN - volume level, from -8 dB to 0 db.
• Rear HPF - FVF configuration (HPF) of the rear speakers
• R-HPF FRQ - cut frequency: trous (off.) / 30 / 40/50 / 60 / 70 /80 /90 /100 /120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz.
• R-HPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.
• R-HPF GAIN - volume level, from -8 dB to 0 db.
• Subwoofer LPF - Settings of the FNCH (LPF) and the phase of the subwoofer. SW LPF FRQ - cut frequency: 30 /40 /50 /60 /70 / 80/90 / 100 / 120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz / Trough (excavation).
• SW LPF PHASE - Switching the electric phase: 0 ° /180 °
• SW LPF GAIN - volume level, from -8 dB to 0 db.
• SW LPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.

• 3-WAY (Network):
• Tweeter - HPF setting for tweeters.
• HP FRQ - Cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz.
• SLOPE (High-High Frequency Slope) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
• PHASE (HF PHASE) - electrical phase switching: 0° / 180°
• GAIN (HF LEVEL) - the volume level of the tweeters, from -8 dB to 0 dB.
• Mid-range - adjusting the high-pass filter (HPF) and low-pass filter (LPF) of the midrange speakers
• HPF FRQ (MF-HPF) - HPF cut off frequency (HPF): THROUGH (off) / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz.
• HPF SLOPE (MF-HFT DECAY) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
• LPF FRQ (MF-LPF) - cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz / THROUGH (off).
• PHASE (MF PHASE) - electrical phase switching: 0° / 180°
• LPF SLOPE (MF-LPF SLOW) - the slope of the LPF slope (LPF): 6 / 12 / 18 / 24 dB / oct.
• GAIN (MIDDLE LEVEL) - the volume level of the midrange speakers, from -8 dB to 0 dB.
• Woofer - low-pass filter (LPF) and subwoofer phase adjustment
• LPF FRQ (SUB LPF) - cutoff frequency: 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 /120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz THROUGH (off).
• SLOPE (SAB-LPF SLOW) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave. PHASE (SUB PHASE) - electrical phase switching: 0° / 180°
• GAIN (SUB LEVEL) - subwoofer volume level, from -8 dB to 0 dB. X’over reset Reset crossover settings.

• Digital Time Alignment Setting
• 2-WAY (Regular)
• Position - choice of listening position.
• All / Front Left / Front Right / Front All.
• Delay - value for each channel.
• Front left - front left
• Front right - front right
• Rear left - rear left
• Rear right - rear right
• Sub-W left - subwoofer left
• Sub-W right - subwoofer right
• Gain - volume value of each channel
• Front left - front left
• Front right - front right
• Rear left - rear left
• Rear right - rear right
• Sub-W left - subwoofer left
• Sub-W right - subwoofer right
• 3-WAY (Network):
• Position
• Listening Position Selection: All / Front Left / Front Right / Front All.
• Delay- value for each channel:
• Front left - MF/LF left
• Front right - MF/LF right
• Rear left - HF left
• Rear right - HF right
• Sub-W left - subwoofer left
• Sub-W right - right subwoofer.
• Gain - volume value of each channel

• Front left - MF/LF left
• Front right - MF/LF right
• Rear left - HF left
• Rear right - HF right
• Sub-W left - subwoofer left
• Sub-W right - right subwoofer

Features:

• High-quality DSP processor on board.
• Time Alignment
• Subwoofer control
• 24-band parametric equalizer
• Two crossover modes:
• 2-WAY (front, rear, subwoofer)
• 3-WAY (channel connection of speakers plus a subwoofer)
• Format support: FLAC, MP3
• Bluetooth (A2DP)
• RGB backlight
• USB port with charging current 1.2A

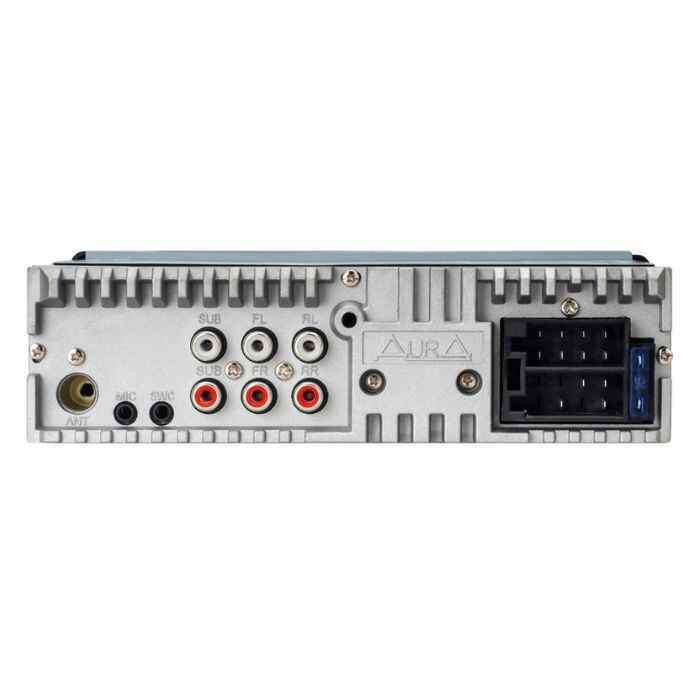

• RCA: 3 pairs (front + rear + subwoofer)
• Output power: 4x51W
• D-SWC
• ISO connector (ISO plug included)

Download Aura Mobile App
