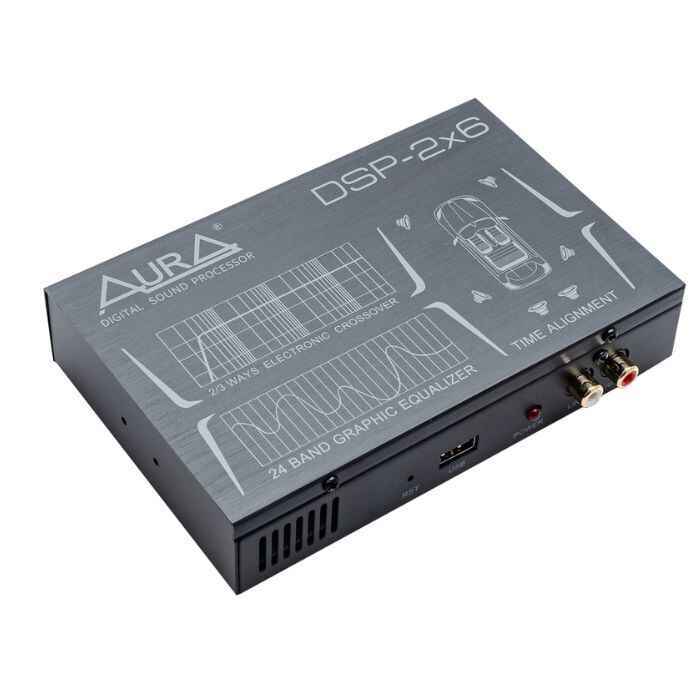

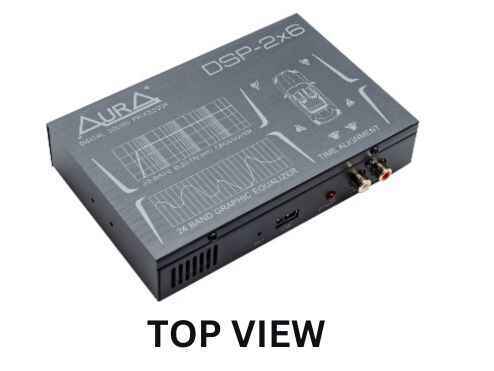

DSP-2×6

Car DSP (Digital Signal Processor)

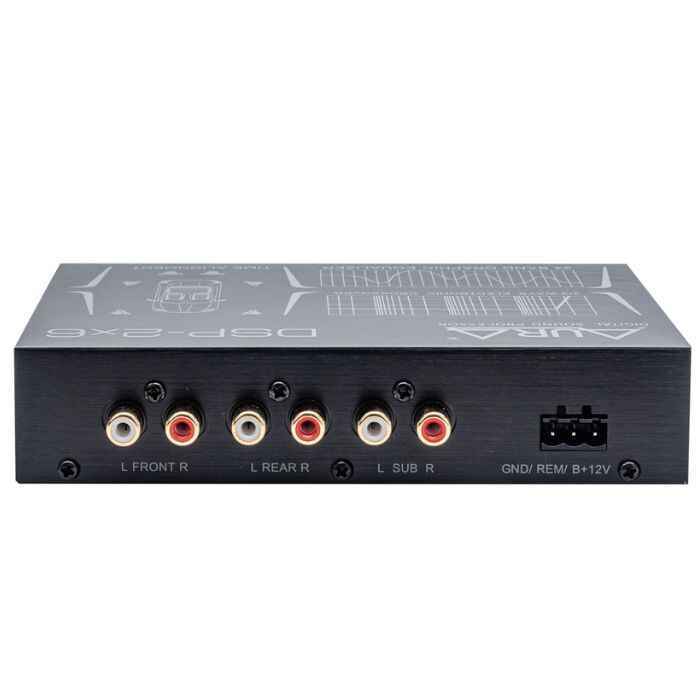

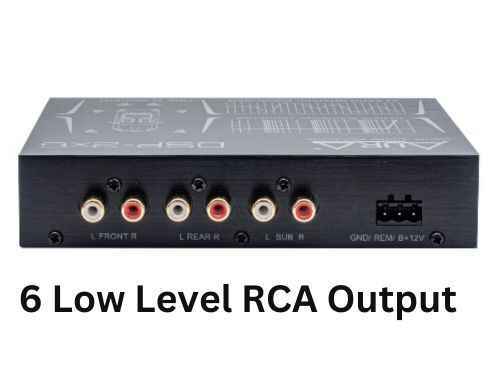

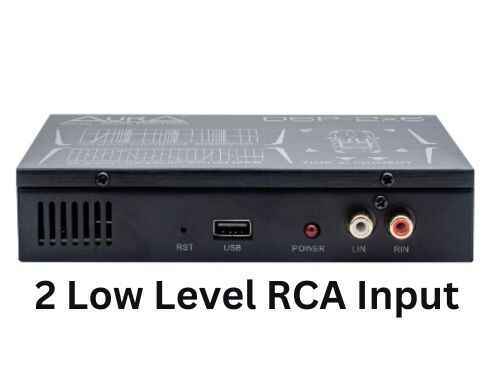

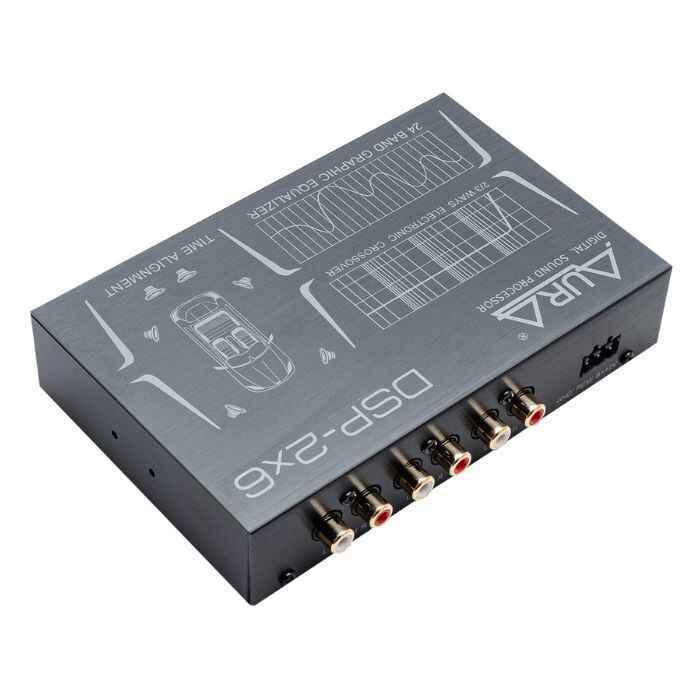

Aura Introduces Digital Signal processor DSP 2X6 with built in BT Module and High-Quality processor. The DSP 2x6 has 2 low level RCA Input and 6 low level RCA Output. This DSP has two crossover modes 2-Way (Front, rear and Subwoofers) and 3-Way ( Channel connection of speakers plus a subwoofer) for a professional tuning using Aura Audio App available for IOS and Android users. The DSP has 24 Band Parametric equalizers...Read More

All the setting function of DSP needs to be done via Aura App…

The DSP has an USB port for direct playback using USB drive with charging current of 1.2A.

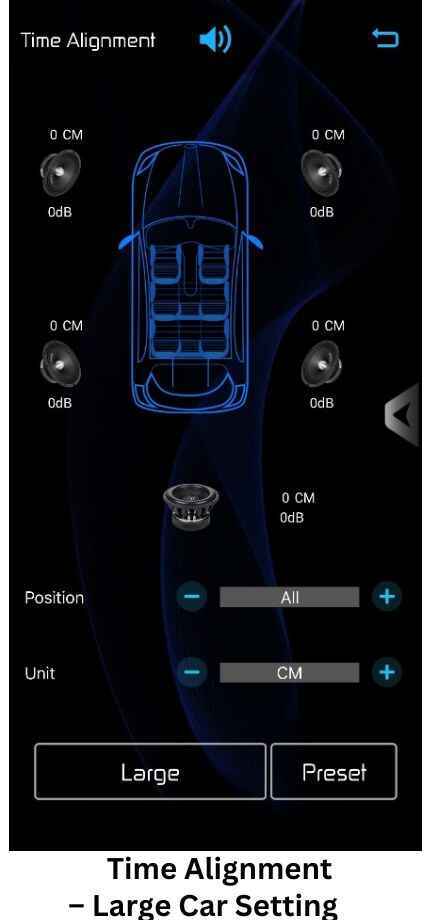

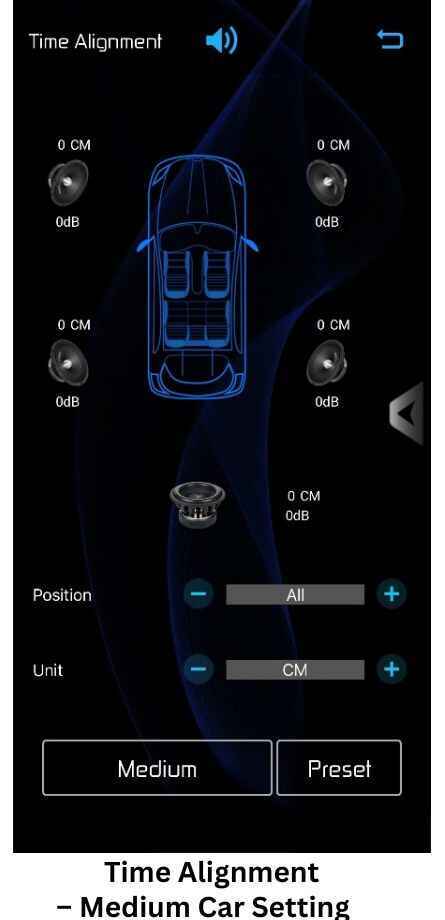

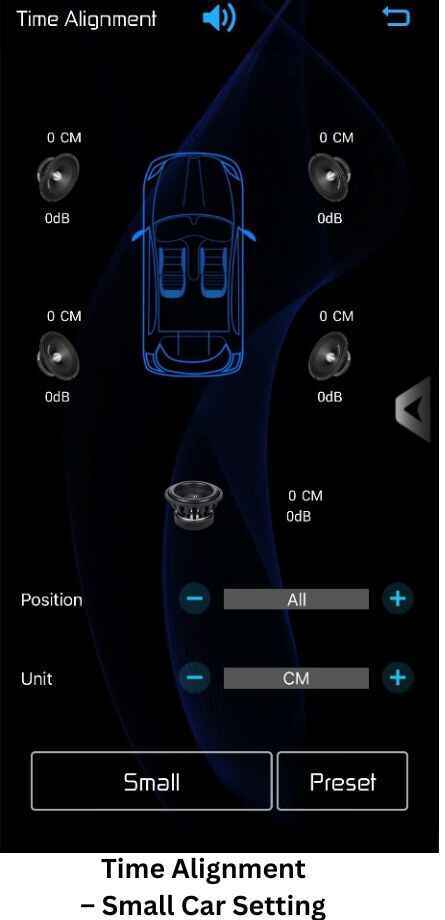

The Audio features such as time alignment, frequency setting by speaker size can be done using this DSP…

Audio setting : The Aura DSP2X6 boast is very High End Audio settings features required by professional installers to get the best sound from system set up using Amplifiers/speakers/subwoofers Etc. The DSP has 24-Band Parametric EQ , user can set frequencies as per 2-Way crossover or 3-way crossover set up. These settings can be done from the headunit or from Aura App.
X-OVER:Setting filters of low and high frequencies (FNCh and FVH). The settings of this menu item will be different for configurations 2-WAY / 3-WAY!

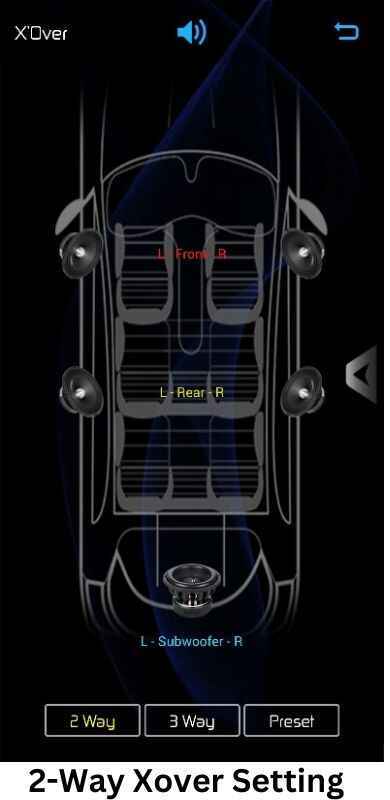

2-WAY (Regular):

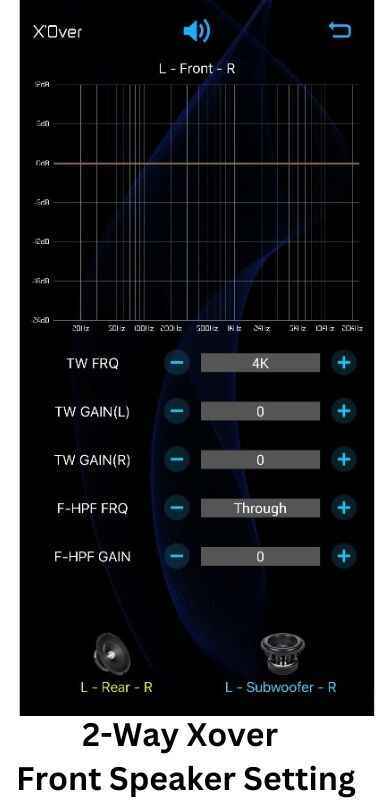

Tweeter - high frequency setting
FRQ - frequency selection: 1 / 1.6 / 2.5 / 3.15 / 4 /5 / 6.3 / 8 /10 / 12.5 kHz.
GAIN LEFT - volume level (left channel), from -8 to 0 dB.
GAIN RIGHT - volume level (right channel), from -8 to 0 db.
Front HPF - FVF configuration (HPF) of the anterior speakers
F-HPF FRQ - cut frequency: trous (off.) / 30 / 40/50 / 60 / 70 /80 /90 /100 /120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz.
F-HPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.
F-HPF GAIN - volume level, from -8 dB to 0 db.

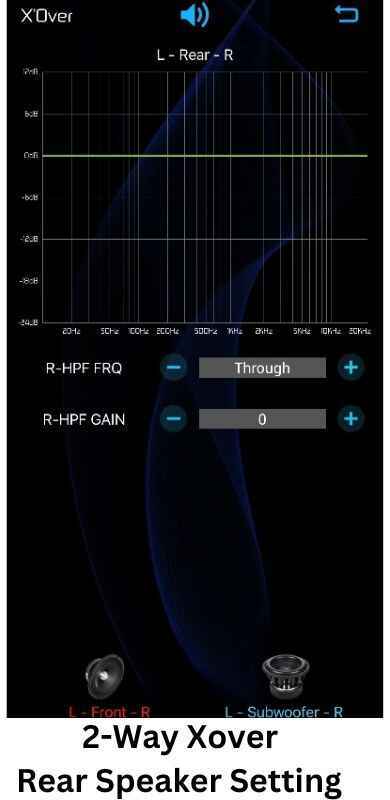

Rear HPF - FVF configuration (HPF) of the rear speakers
R-HPF FRQ - cut frequency: trous (off.) / 30 / 40/50 / 60 / 70 /80 /90 /100 /120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz.
R-HPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.
R-HPF GAIN - volume level, from -8 dB to 0 db.

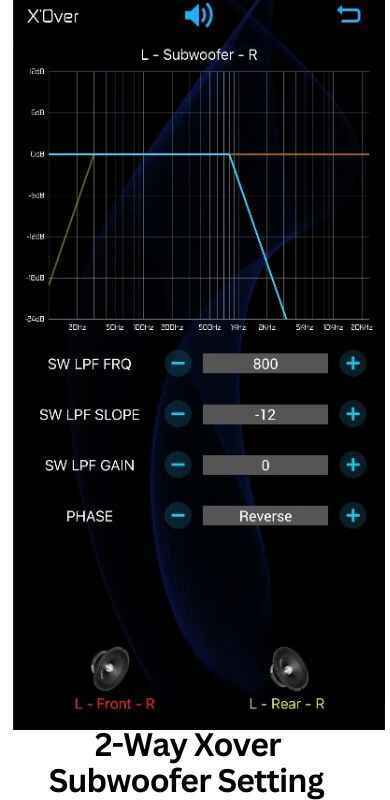

Subwoofer LPF - Settings of the FNCH (LPF) and the phase of the subwoofer. SW LPF FRQ - cut frequency: 30 /40 /50 /60 /70 / 80/90 / 100 / 120 /150 /180 /220 /250 /315 /400 /500 /630 /700 /800 Hz / Trough (excavation).
SW LPF PHASE - Switching the electric phase: 0 ° /180 °
SW LPF GAIN - volume level, from -8 dB to 0 db.
SW LPF SLOPE - the steepness of the decline: 6 / 12/18 / 24 dB per octave.

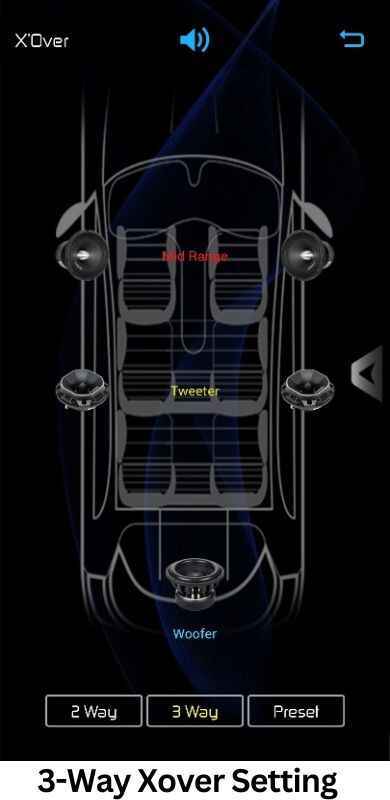

3-WAY (Network):

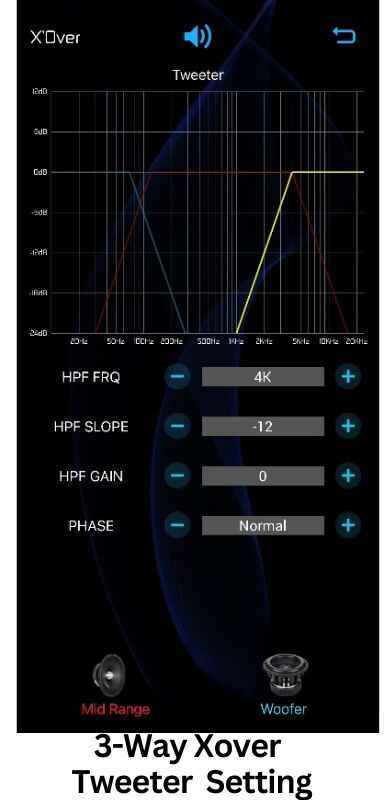

Tweeter - HPF setting for tweeters.
HP FRQ - Cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz.
SLOPE (High-High Frequency Slope) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
PHASE (HF PHASE) - electrical phase switching: 0° / 180°
GAIN (HF LEVEL) - the volume level of the tweeters, from -8 dB to 0 dB.

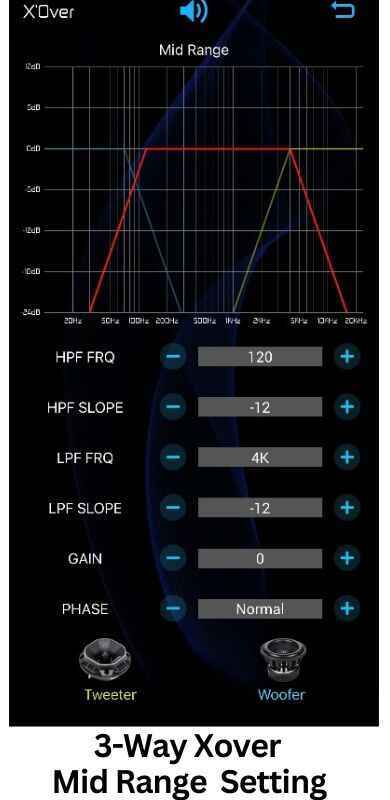

Mid-range - adjusting the high-pass filter (HPF) and low-pass filter (LPF) of the midrange speakers
HPF FRQ (MF-HPF) - HPF cut off frequency (HPF): THROUGH (off) / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz.
HPF SLOPE (MF-HFT DECAY) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave.
LPF FRQ (MF-LPF) - cutoff frequency: 500 / 630 / 700 / 800 / 1 / 1.6 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz / THROUGH (off).
PHASE (MF PHASE) - electrical phase switching: 0° / 180°
LPF SLOPE (MF-LPF SLOW) - the slope of the LPF slope (LPF): 6 / 12 / 18 / 24 dB / oct.
GAIN (MIDDLE LEVEL) - the volume level of the midrange speakers, from -8 dB to 0 dB.

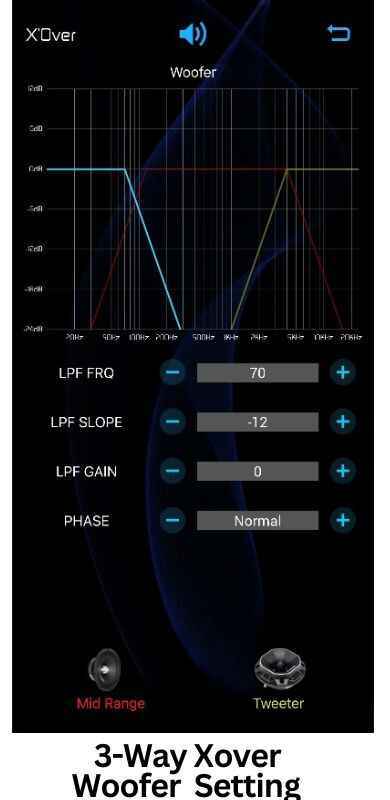

Woofer - low-pass filter (LPF) and subwoofer phase adjustment
LPF FRQ (SUB LPF) - cutoff frequency: 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 /120 / 150 / 180 / 220 / 250 / 315 / 400 / 500 / 630 / 700 / 800 Hz THROUGH (off).
SLOPE (SAB-LPF SLOW) - the steepness of the decline: 6 / 12 / 18 / 24 dB per octave. PHASE (SUB PHASE) - electrical phase switching: 0° / 180°
GAIN (SUB LEVEL) - subwoofer volume level, from -8 dB to 0 dB. X’over reset Reset crossover settings.
