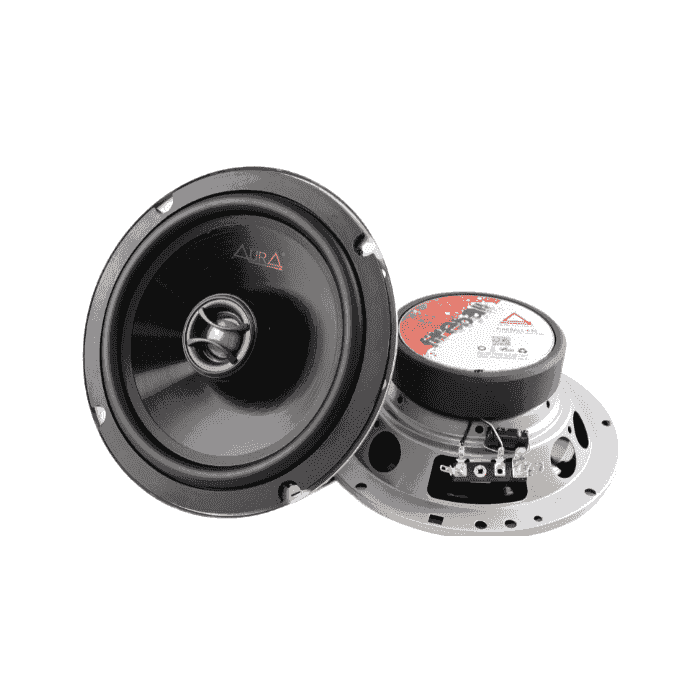

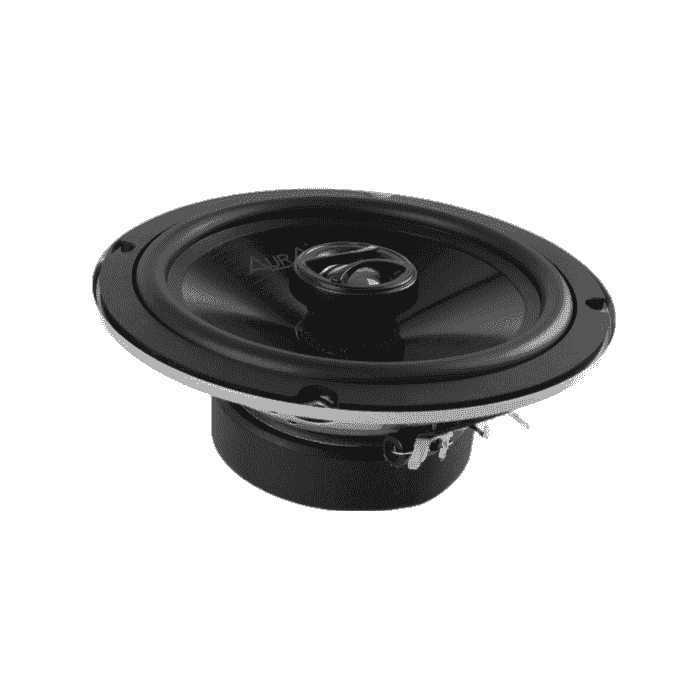

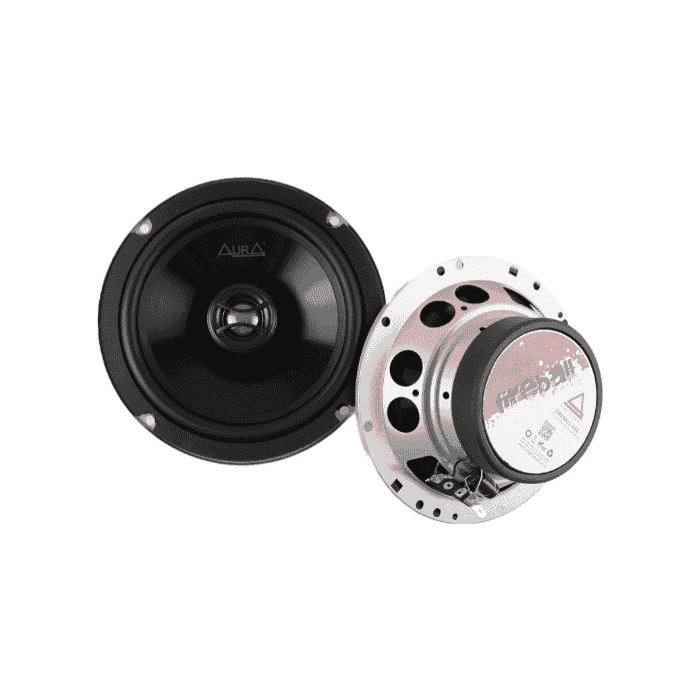

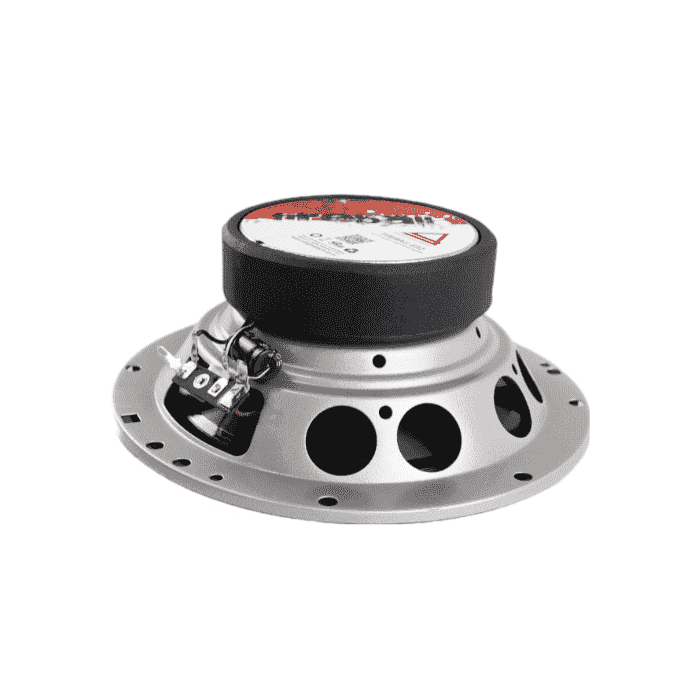

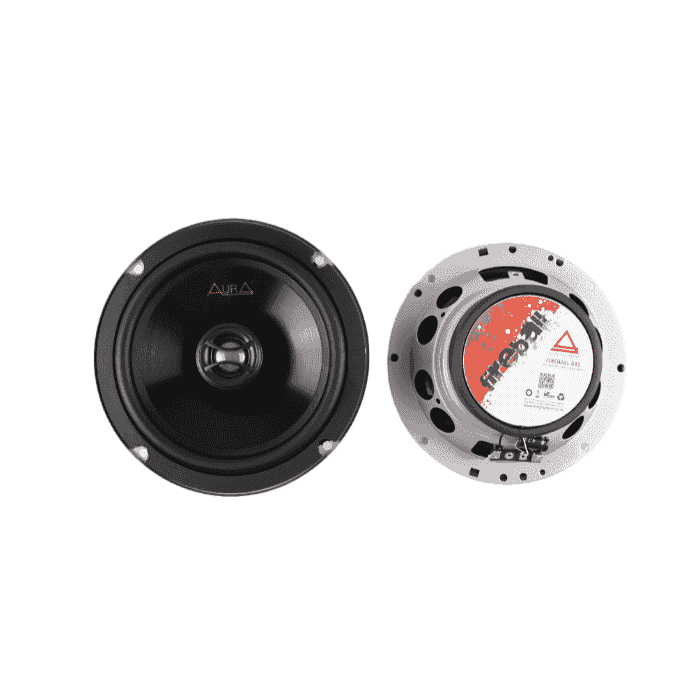

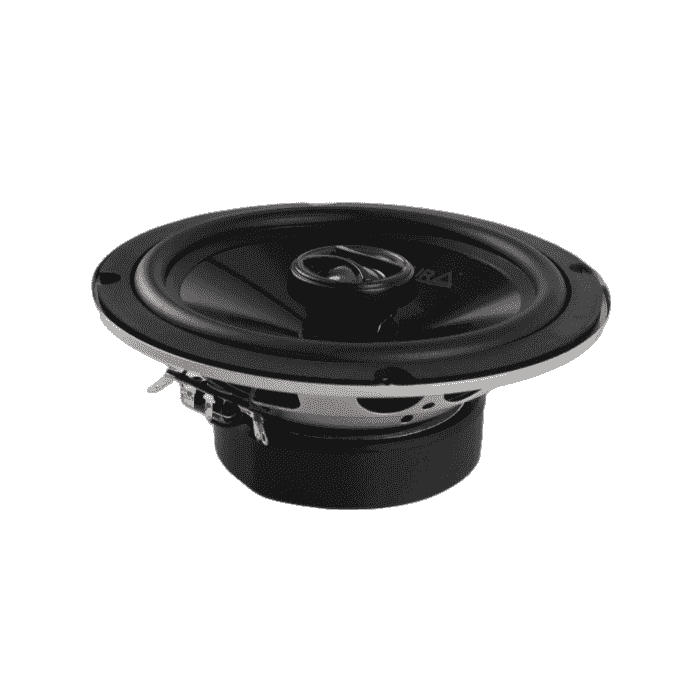

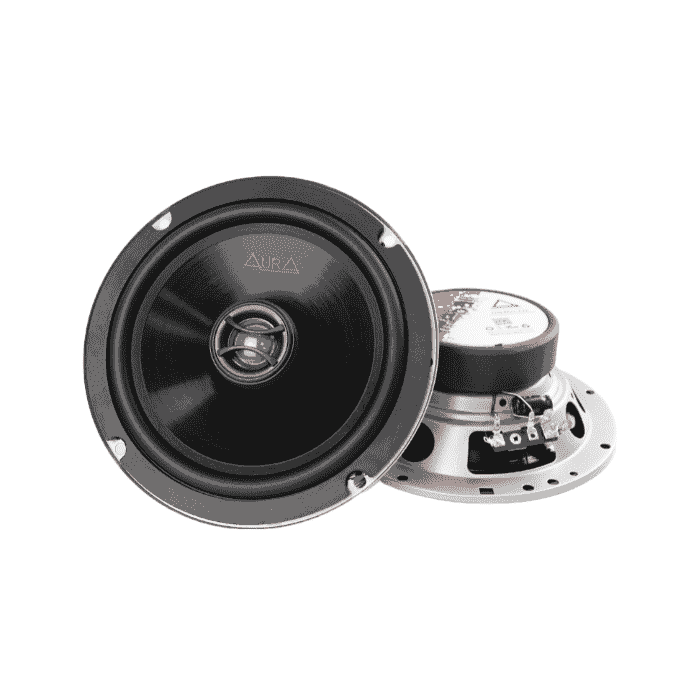

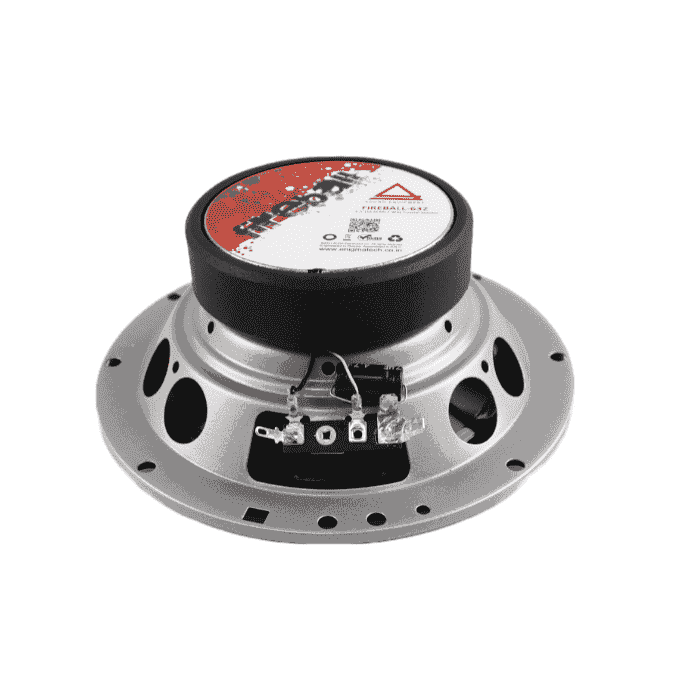

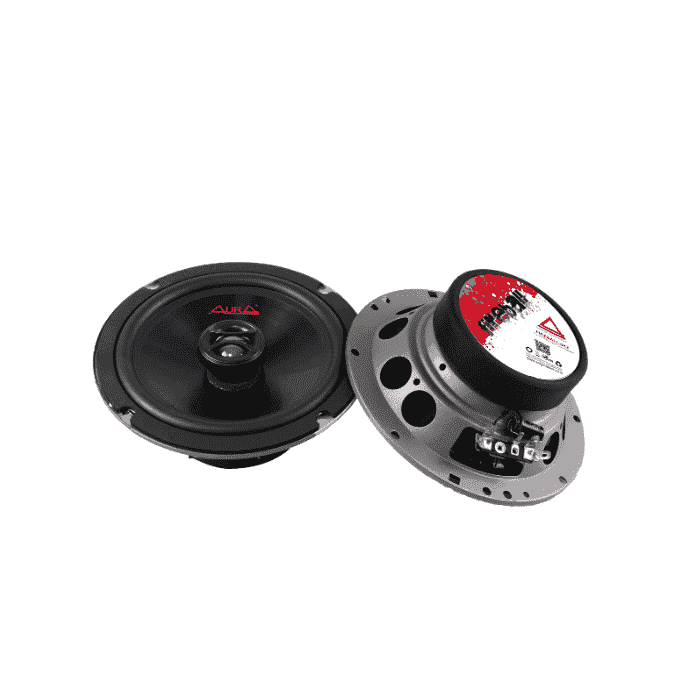

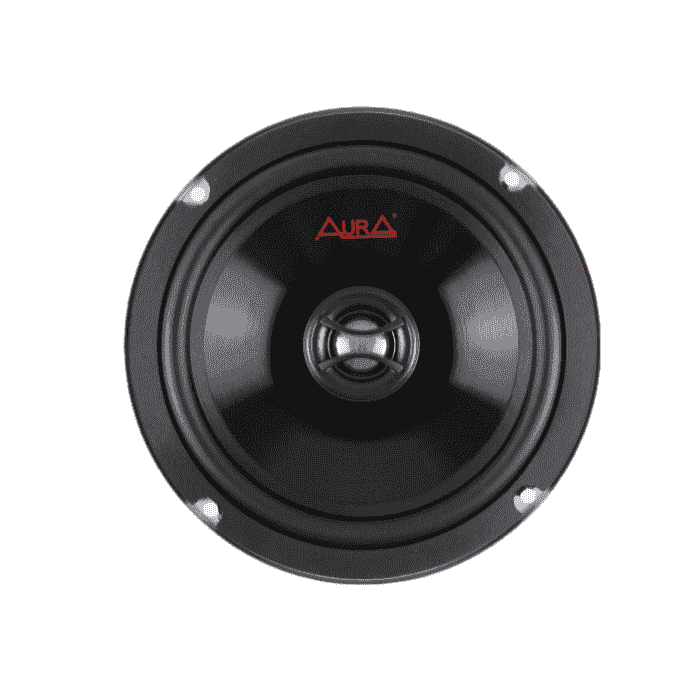

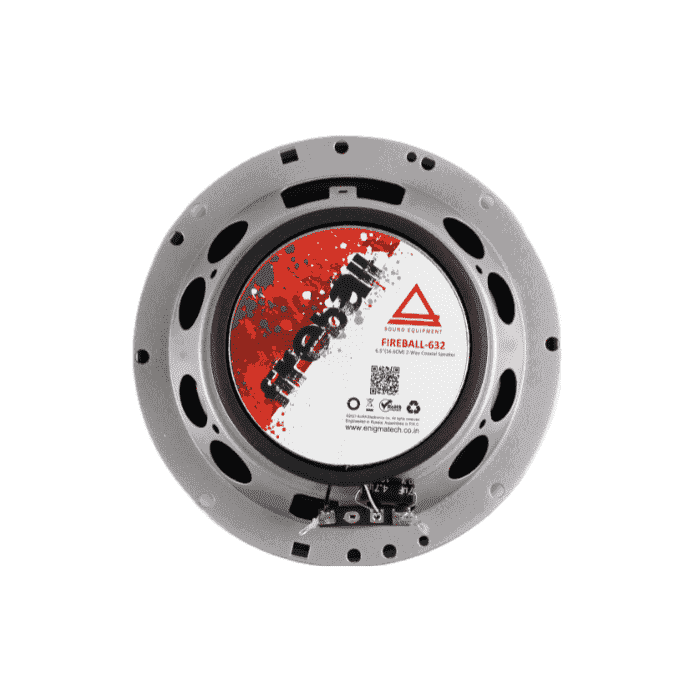

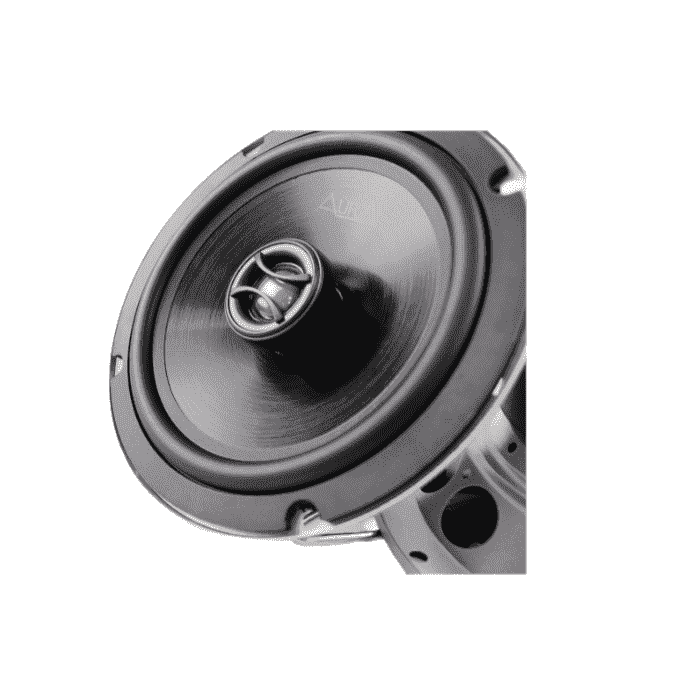

FIREBALL-632
6.5 “ 2-Way Coaxial Speakers
These step-up models in Aura Fireball Speaker Series are made with large magnet to produce deep bass with high clarity and response. It is equipped with Polypropylene cones with Mica Injection woofer rubber surrounds and phase plugs....Read More

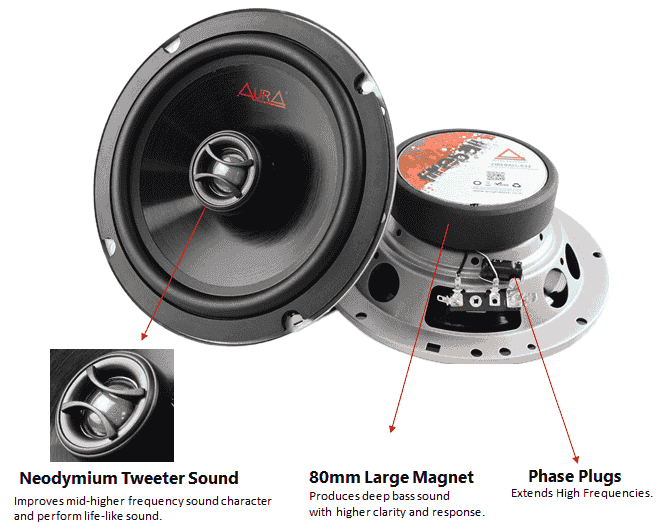

These step-up models in Aura Fireball Speaker Series are made with large magnet to produce deep bass with high clarity and response. It is equipped with Polypropylene cones with Mica Injection woofer rubber surrounds and phase plugs. The Neodymium tweeter improves mid-higher frequency sound character and perform life like sound. With 60RMS Power output and 360W Max power, it can perform well over its RMS power and wattage.

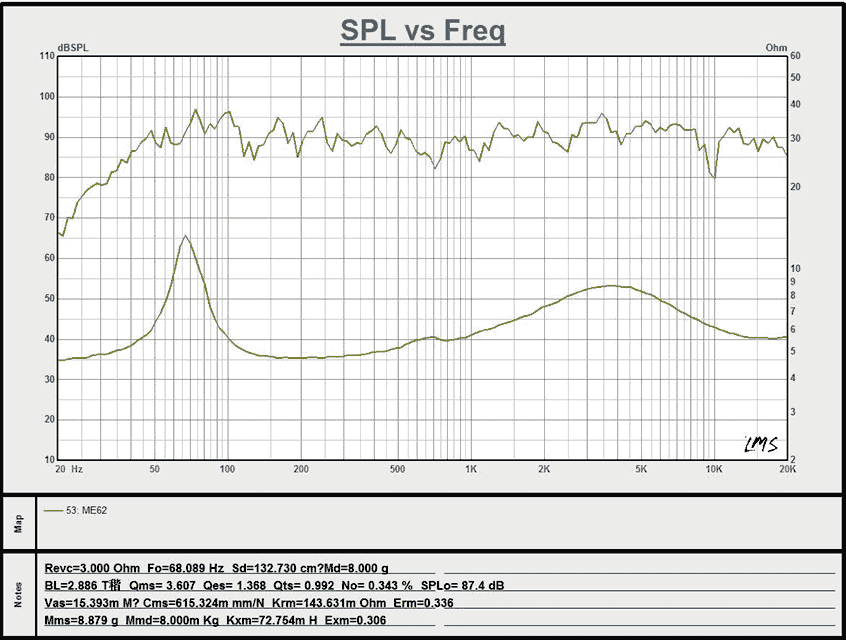

Measured Specifications:
- Equivalent volume, Vas- L - 15.393
- Compliance, Cms- mm/N- 615.324m
- Effective diaphragm/cone area, Sd- CM2 - 132.730
- Voice coil diameter - mm - 25.5
- Voice coil height- mm - 11
- Air Gap height- mm - 4
- Linear Excursion, Xmax- mm - 3.5
- Max Mechanical excursion- mm - 11
- Voice coil inductance- mH- 0.21
- Force factor, Bxl- Tm - 2.886
- Moving mass, Md- g - 8
- Qms- 3.607
- Qes- 1.368
- Qts- 0.992
Technical Specifications:
- Model No : Fireball-632
- Type : 6.5” 2-Way Coaxial Speaker
- Speaker Size: 6.5 “ (16.7CM)
- Speaker Diameter: 167MM
- Speaker Type : Woofer
- Normal Output Power (RMS ):60Watts
- Sensitivity : 86± 10dB Max (1M / 1W)
- Impedance: 3 Ohms
- Frequency Response : 60 - 22000 Hz
- Cone Material : Polypropylene with Mica Injection Woofer
- Surround : Rubber Edge Phase Plug
- Voice Coil Diameter: ASV Φ25.5mm
- Magnet Mass : 14Oz
- Size : 167mmX167mmx70mm
