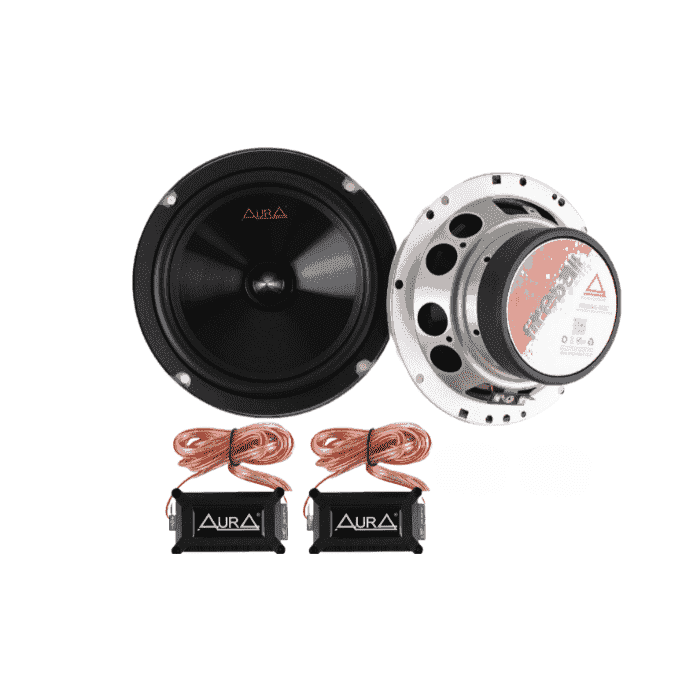

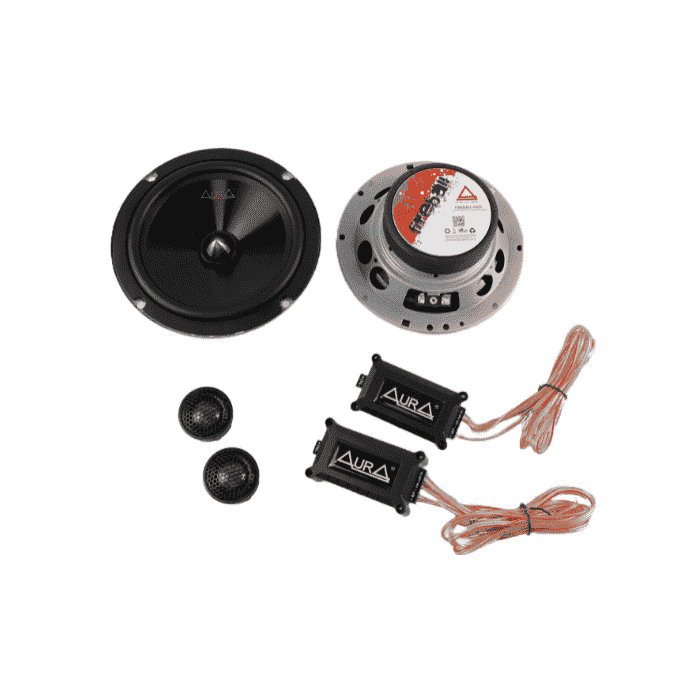

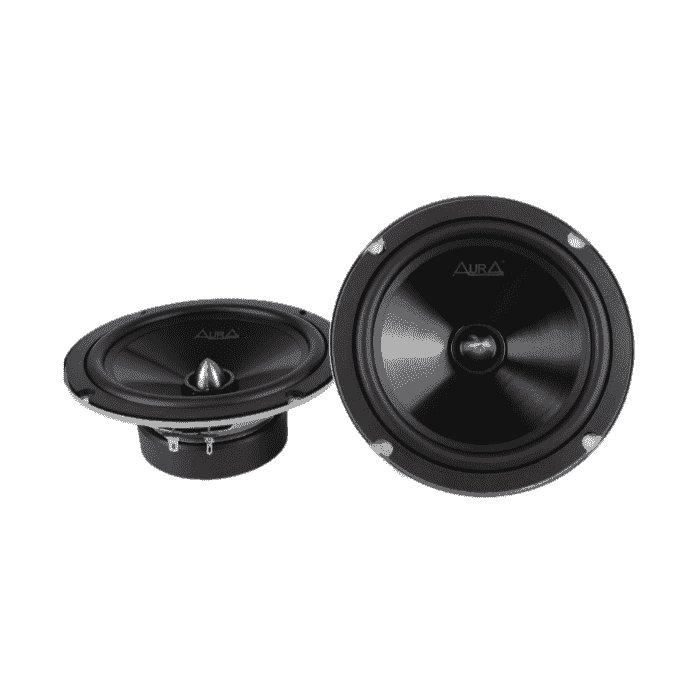

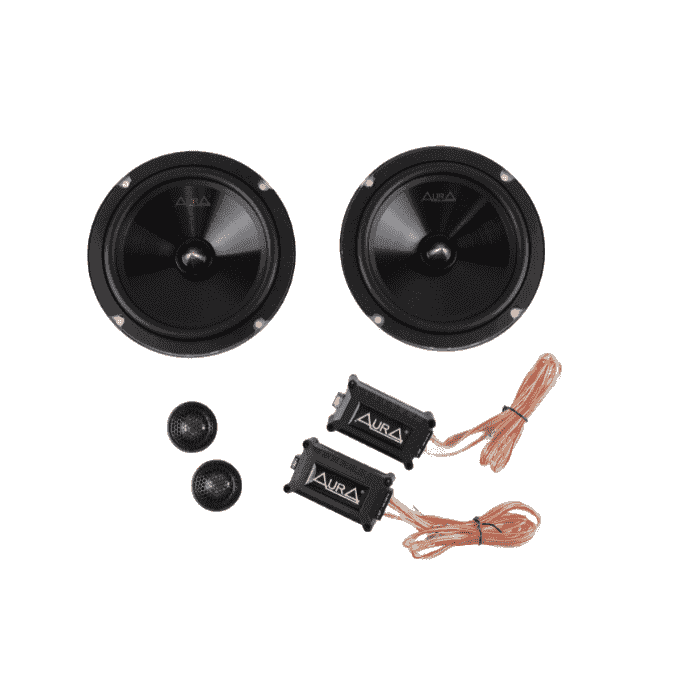

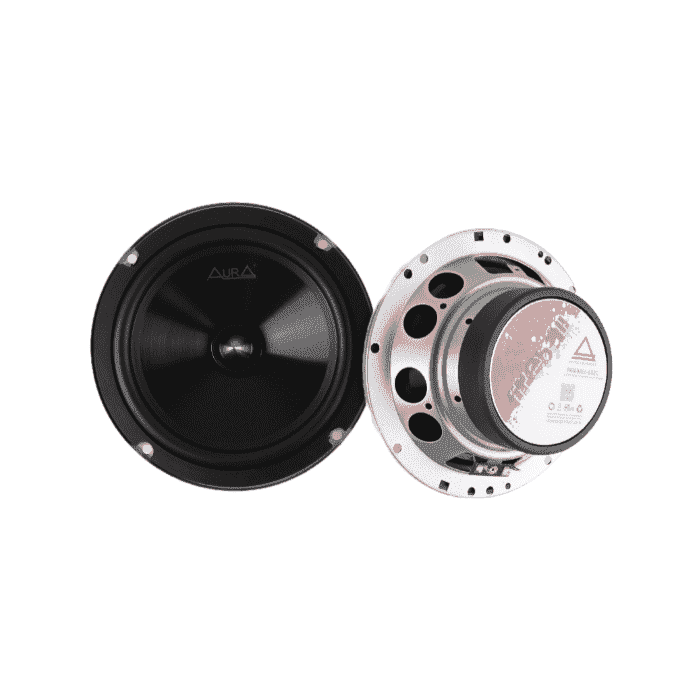

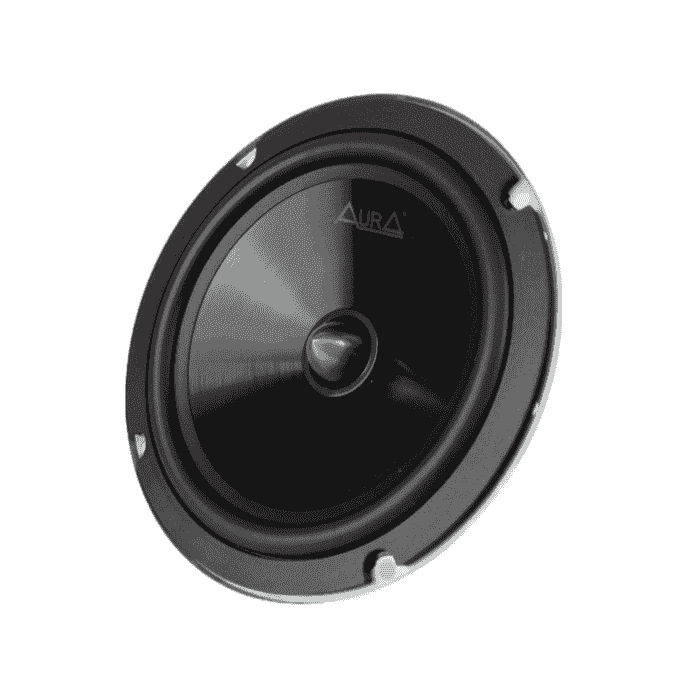

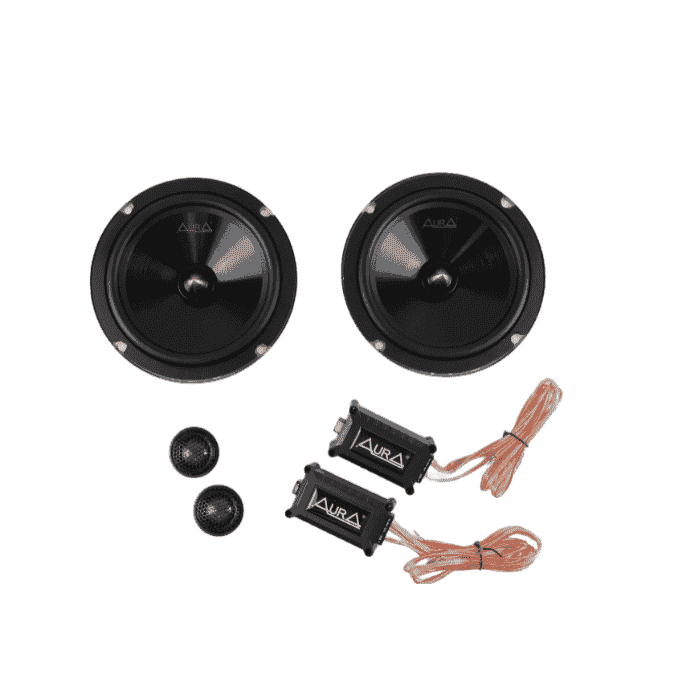

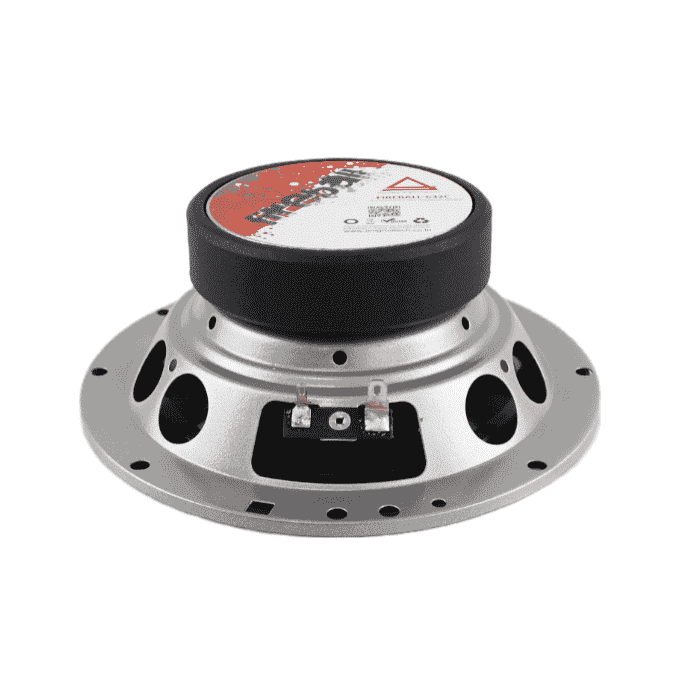

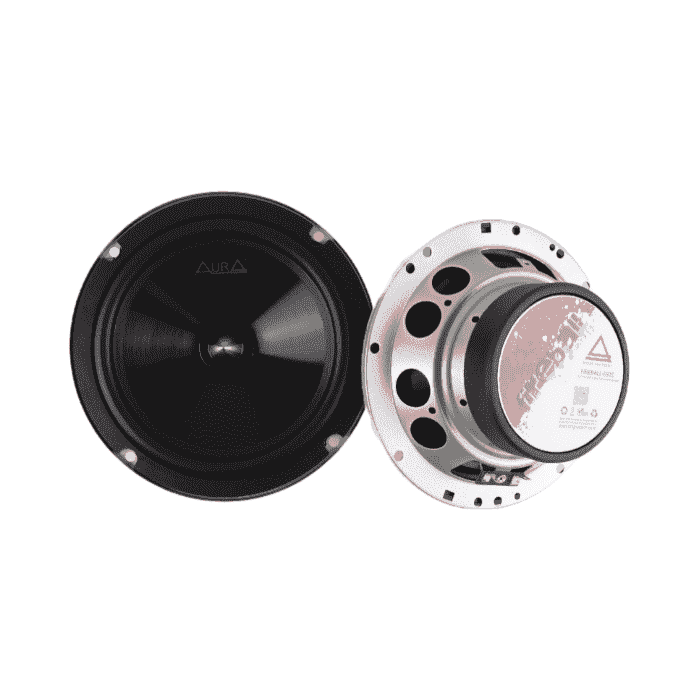

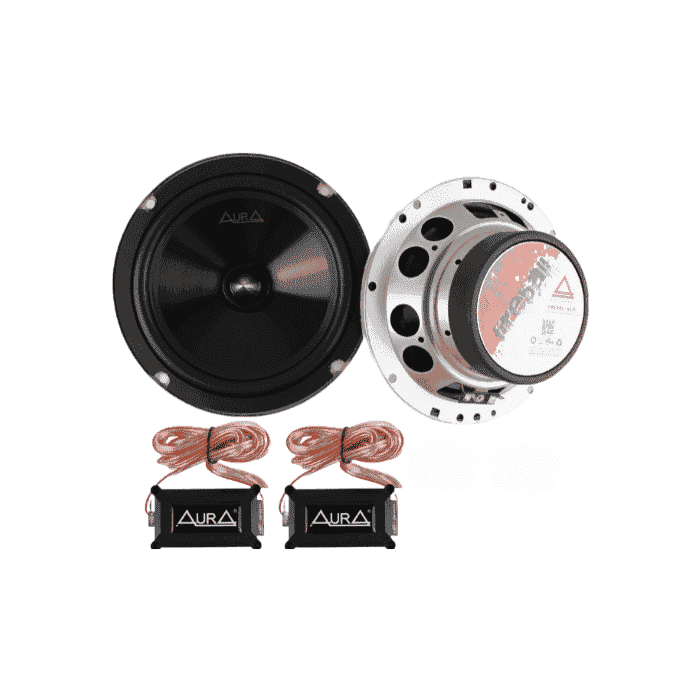

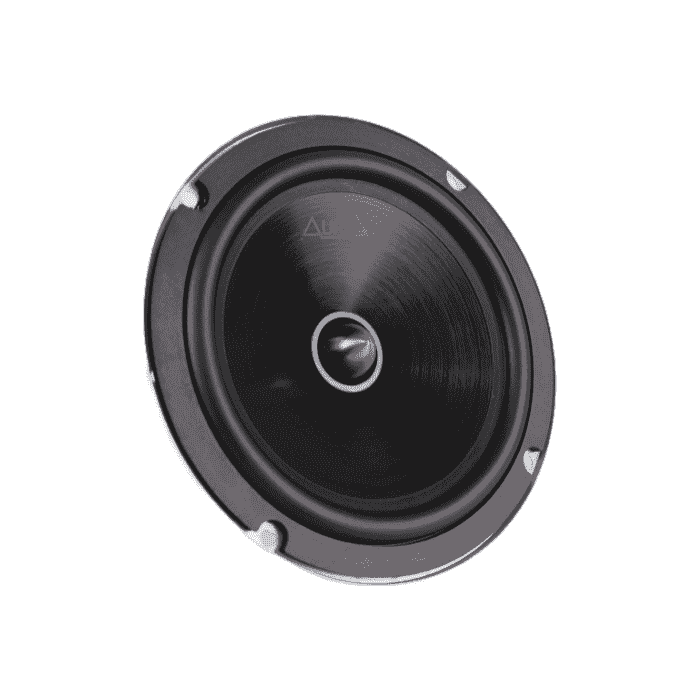

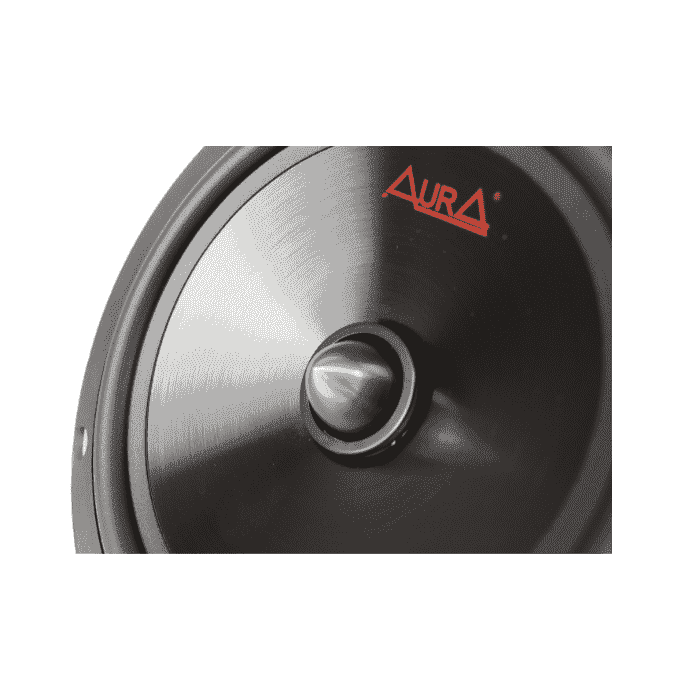

FIREBALL-632C

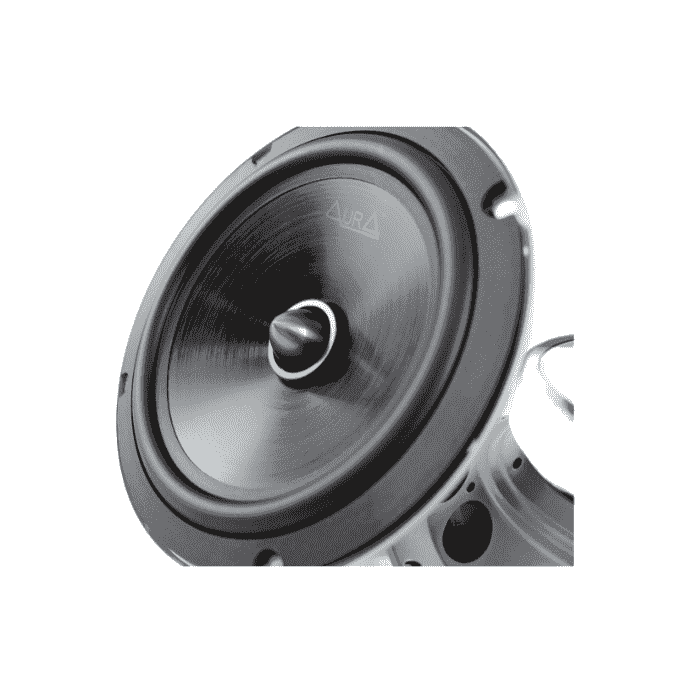

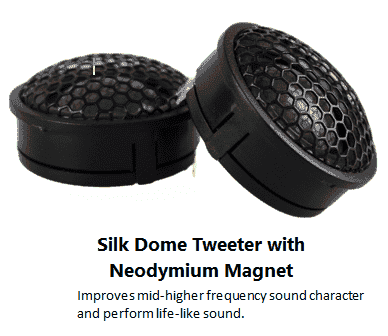

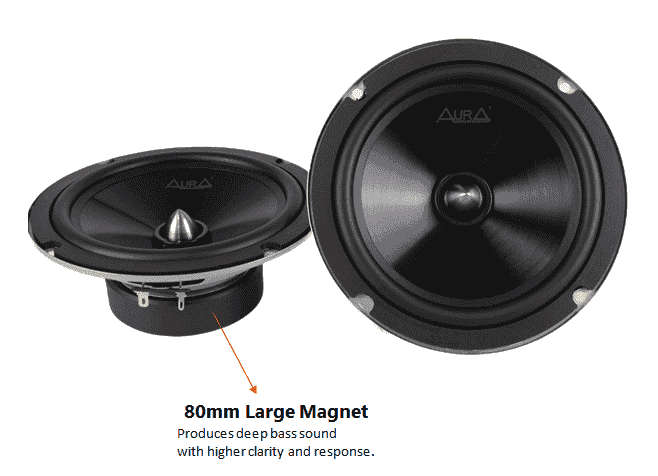

These step-up models in Aura Fireball Speaker Series are made with large magnet to produce deep bass with high clarity and response. It is equipped with Polypropylene cones with Mica Injection woofer rubber surrounds. The Neodymium tweeter improves mid-higher frequency sound character and perform life like sound. With 80RMS Power output and 400W Max power, it can perform well over its RMS power and wattage.

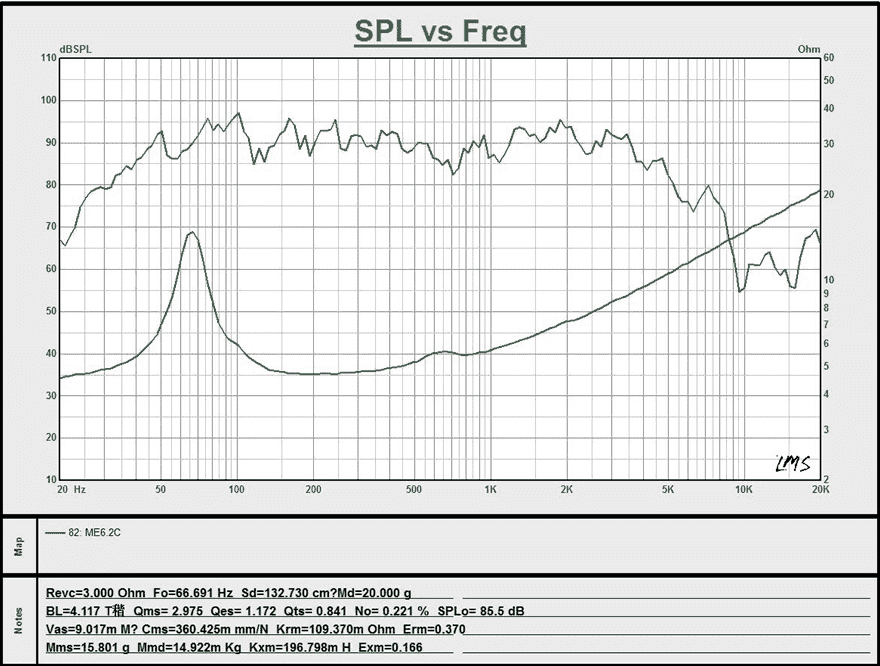

Measured Specifications:

• Equivalent volume, Vas- L - 9.017
• Compliance, Cms- mm/N- 360.425m
• Effective diaphragm/cone area, Sd- CM2 - 132.730
• Voice coil diameter - mm - 25.5
• Voice coil height- mm - 11
• Air Gap height- mm - 4
• Linear Excursion, Xmax- mm - 3.5
• Max Mechanical excursion- mm - 11
• Voice coil inductance- mH- 0.21
• Force factor, Bxl- Tm - 4.117
• Moving mass, Md- g - 20
• Qms- 2.975
• Qes- 1.172
• Qts- 0.841

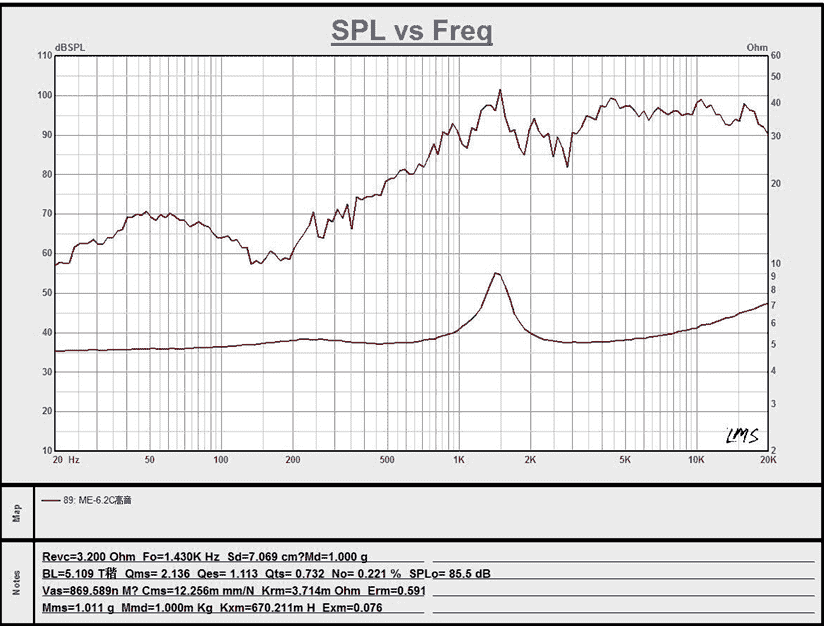

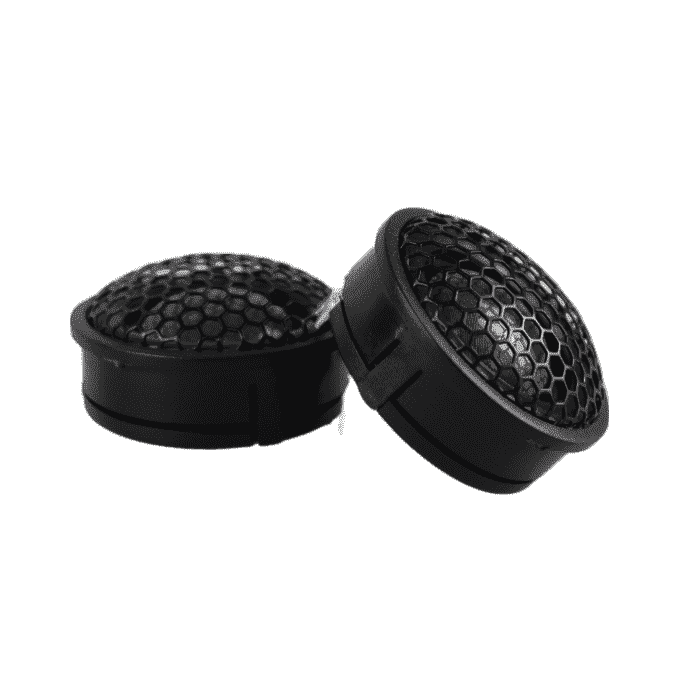

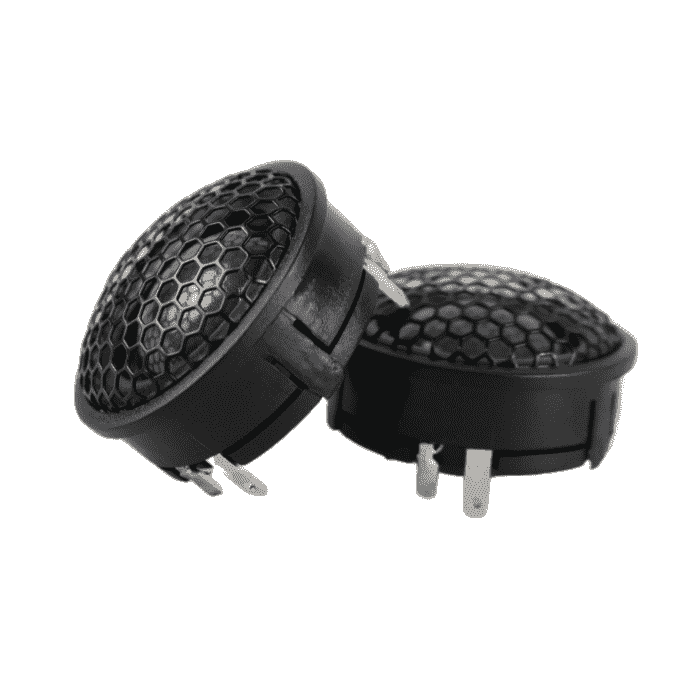

Measured Specifications: Tweeter

• Voice coil diameter- mm - 25.5
• Voice coil height- mm- 5
• Air Gap height - mm - 2
• Linear Excursion, Xmax - mm - 0.5
• Max Mechanical excursion - mm - 3
• Voice coil inductance - mH - 0.12
• Qms- 2.136
• Qes- 1.113
• Qts- 0.732
