Fireball-CL6C

Fireball-CL6C

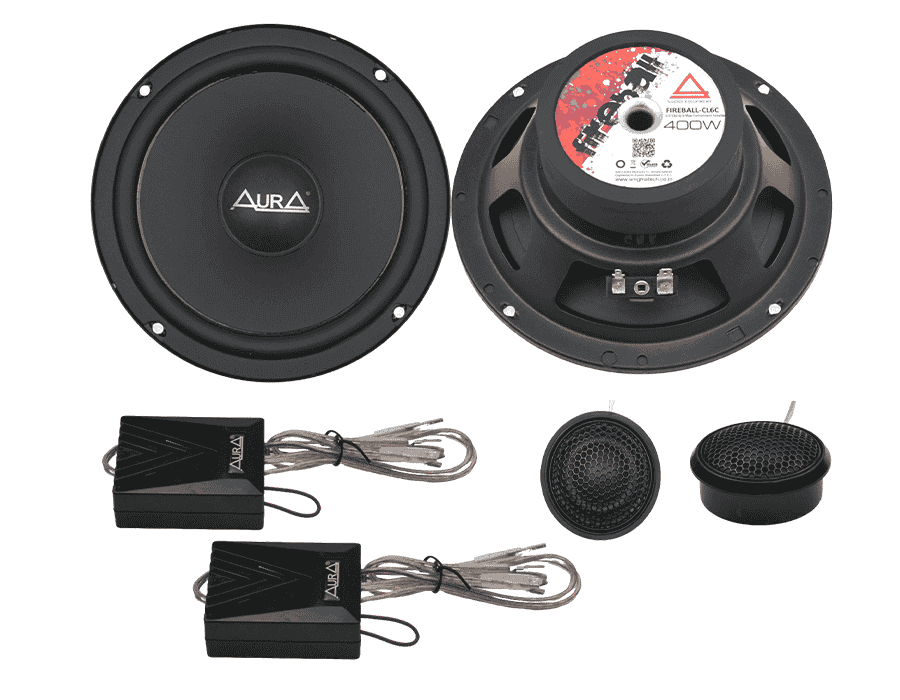

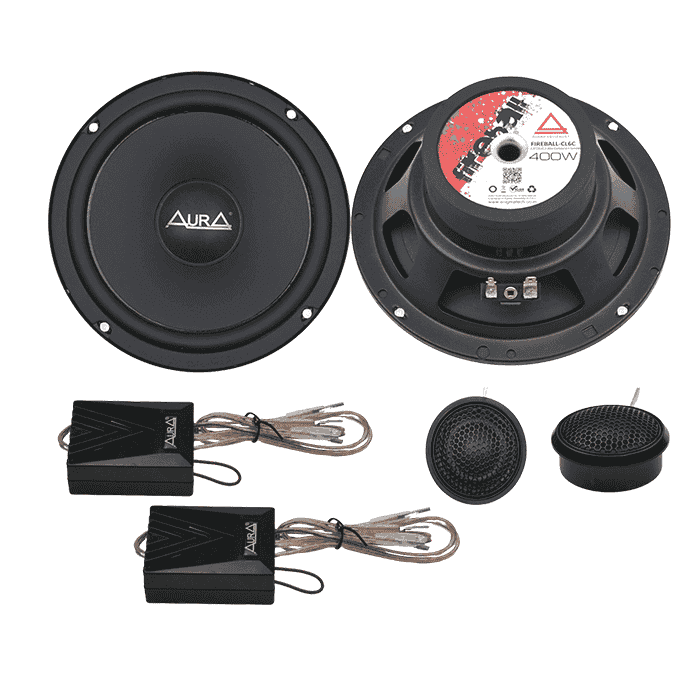

  • 6.5 “ 2-Way Component Speakers
  • Unveil a new dimension of sound with the Fireball-CL6C 6.5” 2-Way Component Speakers. This latest addition to the Fireball series combines cutting-edge technology and superior craftsmanship to deliver an unparalleled audio experience, setting a new benchmark in speaker performance.Read More

Exceptional Sound Clarity and Power

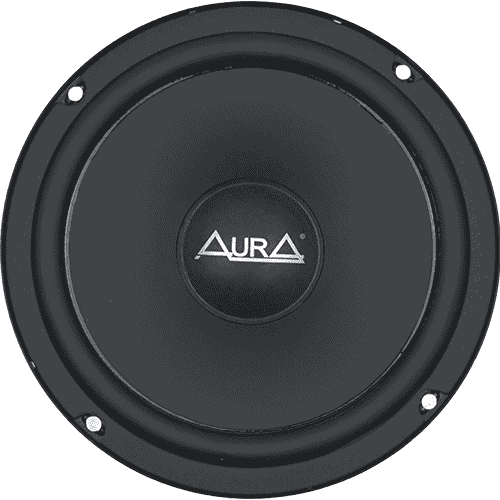

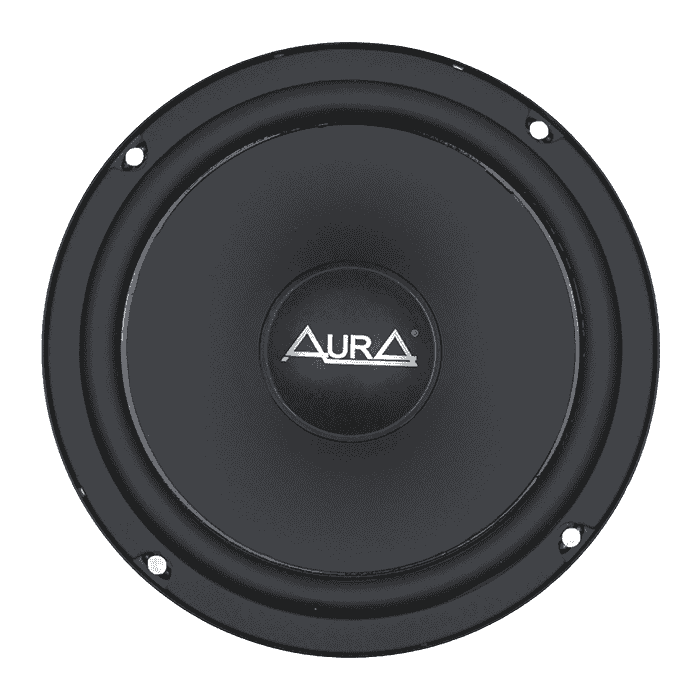

The Fireball-CL6C boasts a robust 6.5” woofer that excels in delivering powerful, deep bass and crystal-clear mids. With a normal RMS power output of 80 watts and a maximum power handling capacity of 400 watts, these speakers are engineered to perform effortlessly at high volumes without distortion. The paper cone, reinforced with a silicone rubber surround, ensures a rich and precise bass response that enhances every musical note.

Image 1
Image 2

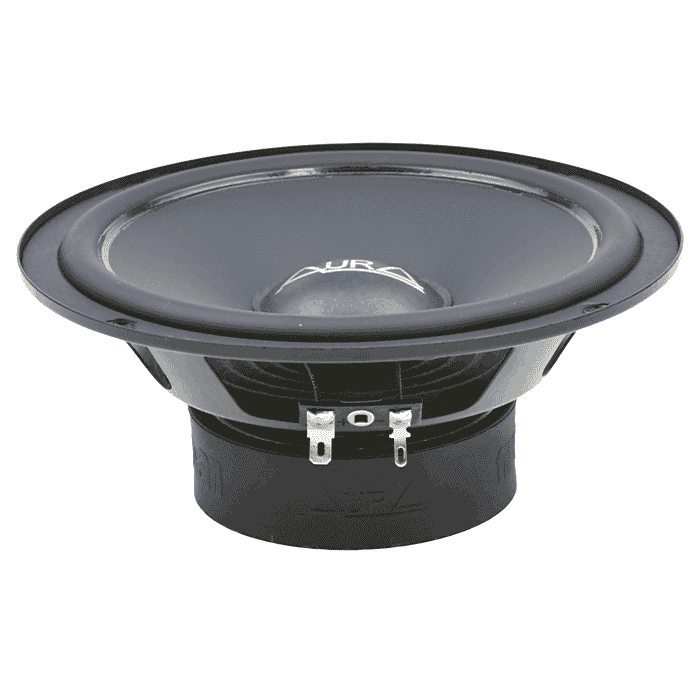

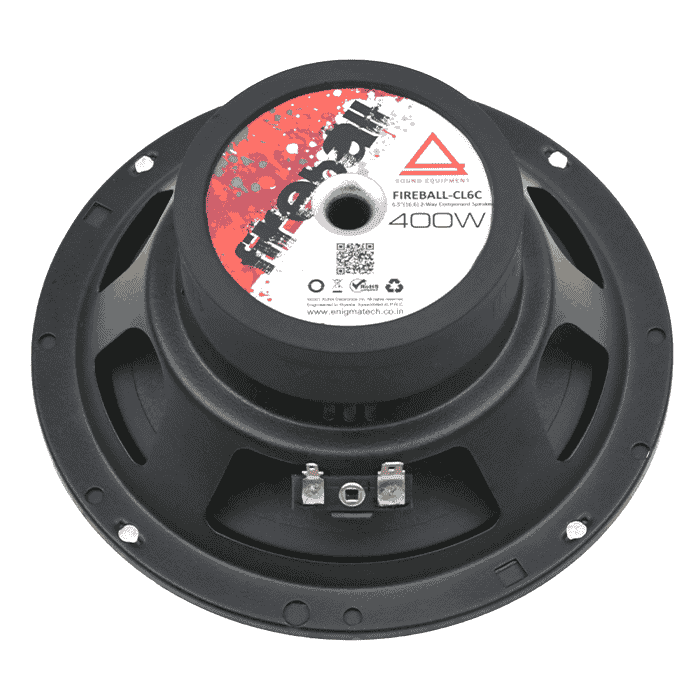

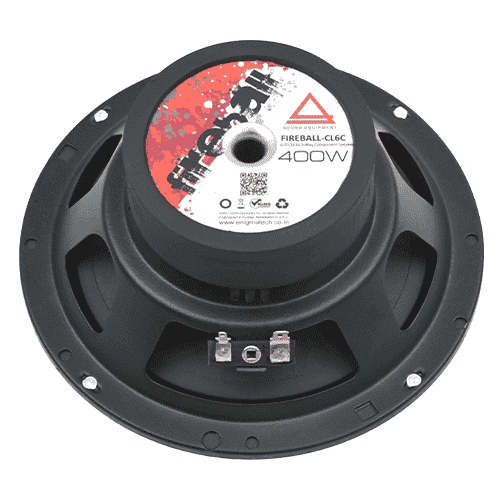

The 80mm large magnet delivers deep, powerful bass with enhanced clarity and responsiveness.

High-Fidelity Tweeter Performance

The silk dome tweeter of the Fireball-CL6C, with its 44 mm size, is meticulously designed to handle high frequencies with remarkable accuracy. It covers a frequency range from 1,380 to 20,000 Hz, delivering bright, detailed treble that brings out the finest nuances in your music. With a rated RMS power of 15 watts and a maximum power of 30 watts, it balances well with the woofer to create a harmonious sound profile.

Image 1
Image 2

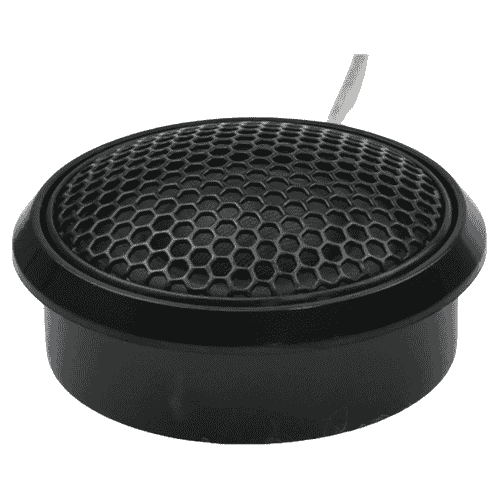

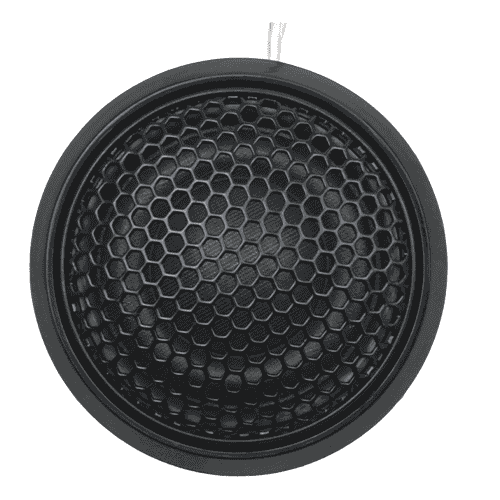

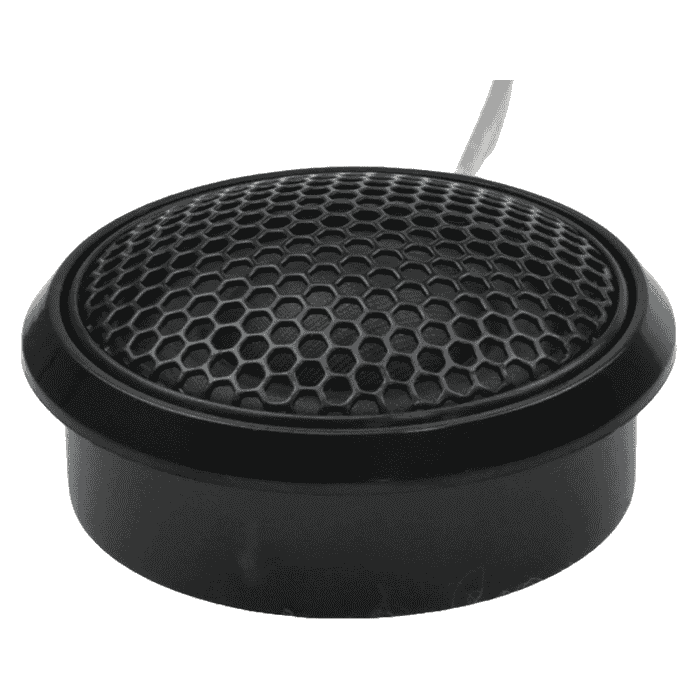

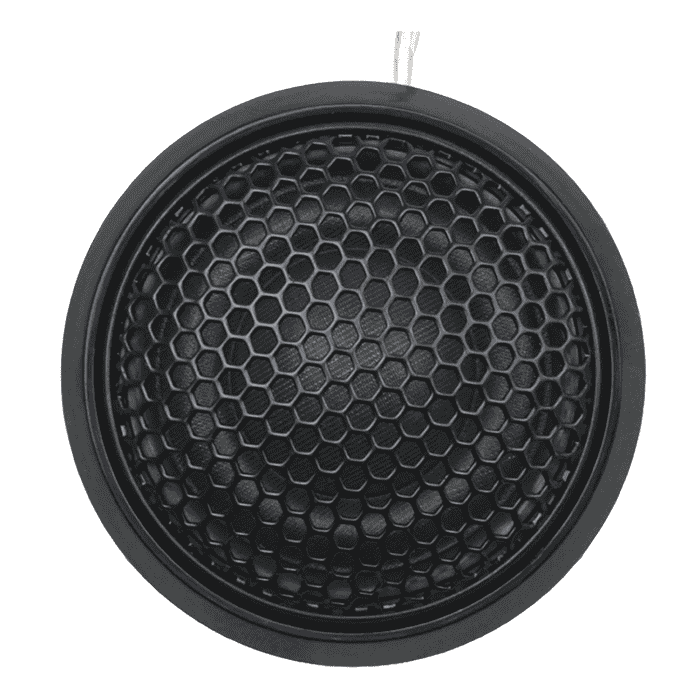

The silk dome tweeter with a neodymium magnet enhances mid-to-high frequency performance, delivering lifelike and vibrant sound.

Advanced Crossover Technology

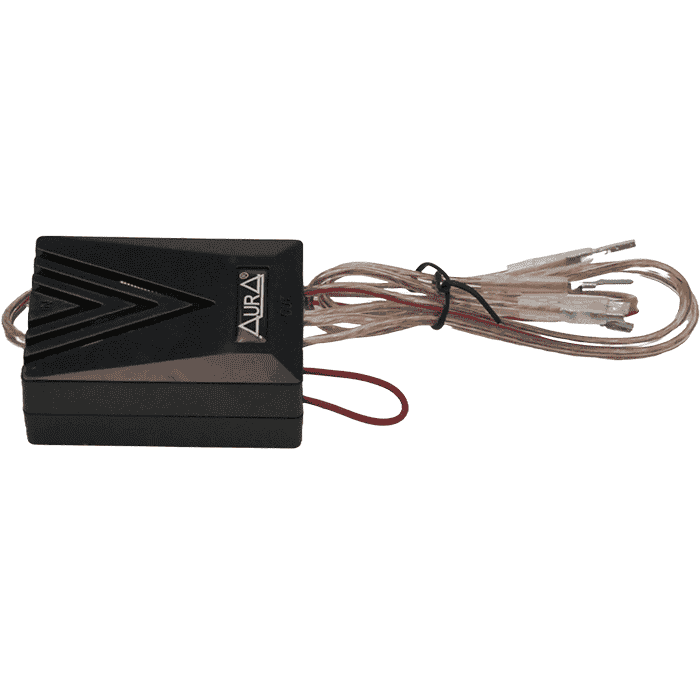

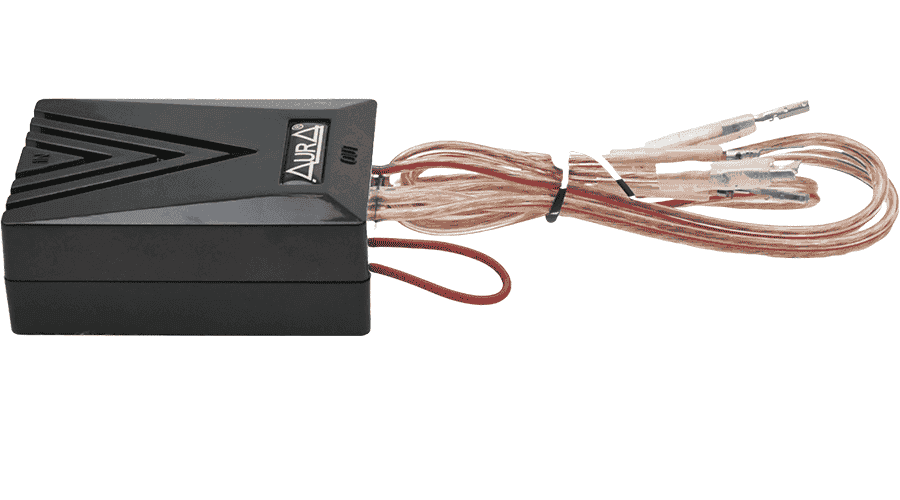

Our sophisticated 2-way crossover network ensures that the woofer and tweeter operate seamlessly together. The 12 dB/octave slope effectively manages the frequency distribution, resulting in a smooth transition between the low and high frequencies and 0db-3dB offers flexibility for higher frequency listening choice(Red Wire needs to be cut for -3Db). This precise crossover design contributes to the overall coherence and clarity of the audio, making every listening session a rich, immersive experience.

Robust Build for Superior Durability

The Fireball-CL6C is built to last, featuring a substantial 11.4 oz magnet that enhances the speaker’s overall performance. The voice coil, with a diameter of 25.5 mm, provides excellent thermal dissipation, allowing the speakers to handle high power levels without compromising sound quality. With a compact size of 166 x166 x 70 mm, the speakers fit seamlessly into a variety of installation spaces..

Precision in Every Detail

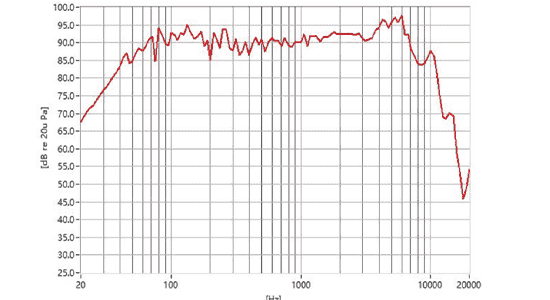

  • Frequency Response: The woofer covers a broad range from 70 Hz to 10,000 Hz, while the tweeter extends from 1,380 Hz to 20,000 Hz. This comprehensive frequency range ensures that every aspect of your audio is rendered with precision.
  • Sensitivity: At 91 dB for the woofer and 88 dB for the tweeter, the Fireball-CL6C speakers offer efficient sound reproduction, making them compatible with a wide range of audio systems.

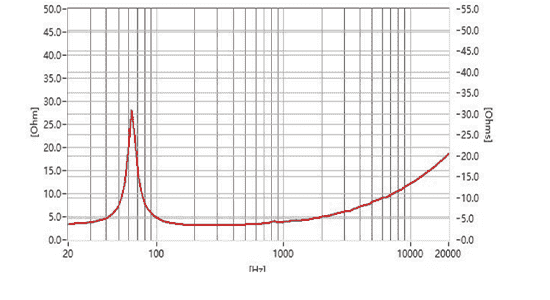

  • Impedance: With a standard impedance of 4 ohms, these speakers are designed to integrate effortlessly with most amplifiers, providing reliable performance and excellent power handling.
Image 1
Image 2
Image 1
Image 2

Fireball-CL6C

Type 2-Way Component Speaker
Speaker Size 6.5" (16.65 CM)
Speaker Diameter 166.5mm
Speaker Type Woofer
Normal Output Power (RMS) 80W
Nominal Power 80W
Maximum Power output 400W
Frequency Response 70-10000Hz
Sensitivity 91dB
Sensitivity 91dB
Impedance 4 ohm
Cone Material Paper Cone
Surround Silicone rubber surround
Phase Plug Steel
Voice Coil Diameter 25.5MM
Magnet Mass 11.4 OZe
Size 166x166x 70mm
Tweeter Specifications Silk Dome
Size 44mm
Type tweeter
Nominal Impedance 4 ohm
Frequency Response 1380-20000Hz
Rated Power RMS 15W
Maximum Power 30W
Sensitivity 88dB
Weight 55G
Size 44*44*19.2mm
Crossover Specifications
Size 67.8*48.8*26mm
Slope 12DB
Name
Download
FIREBALL-CL6C INSTRUCTION MANUAL
