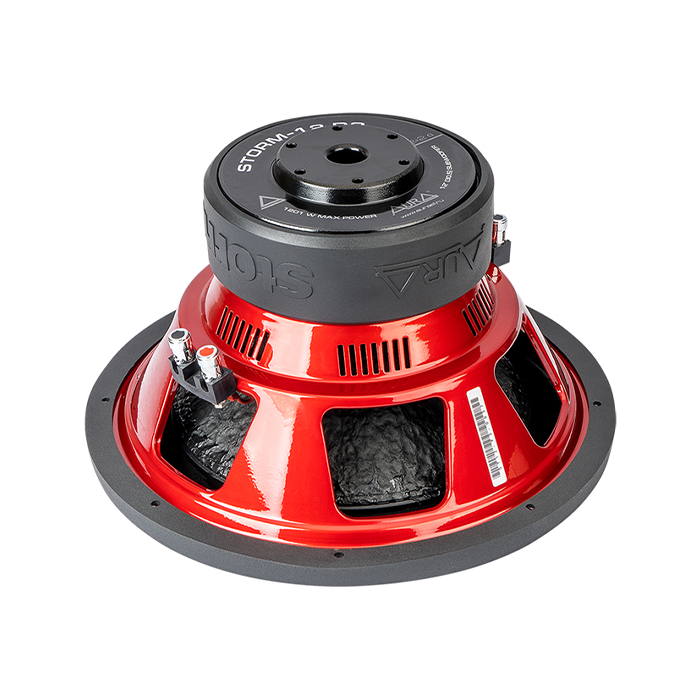

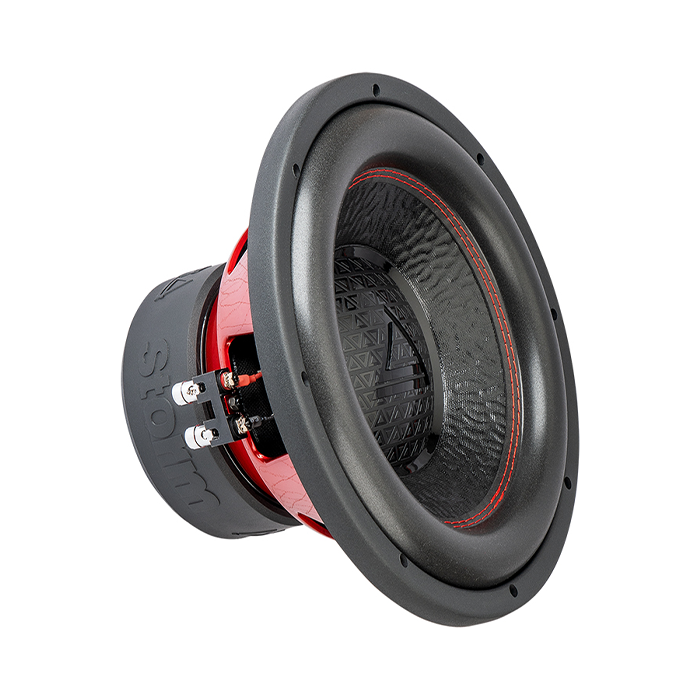

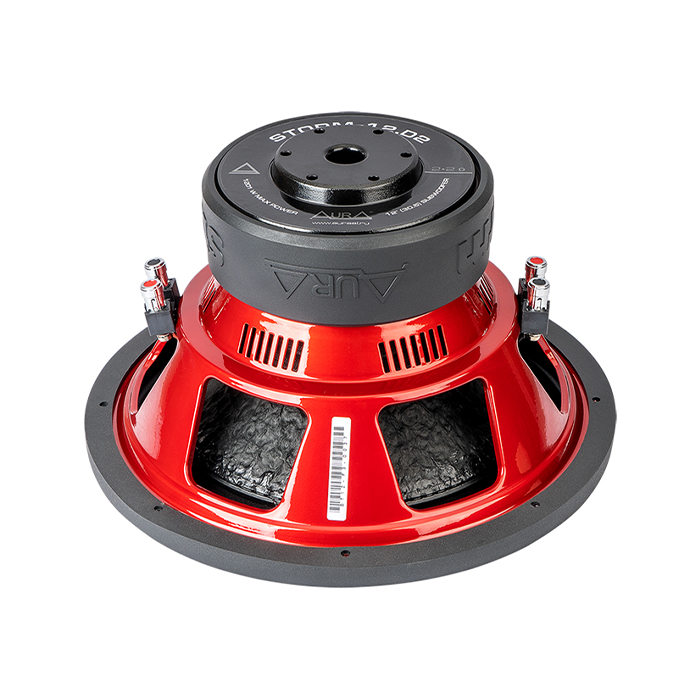

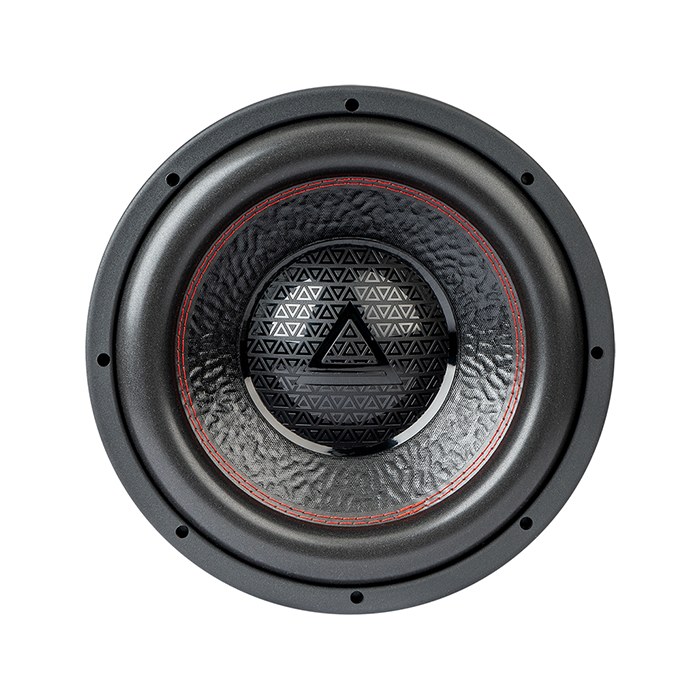

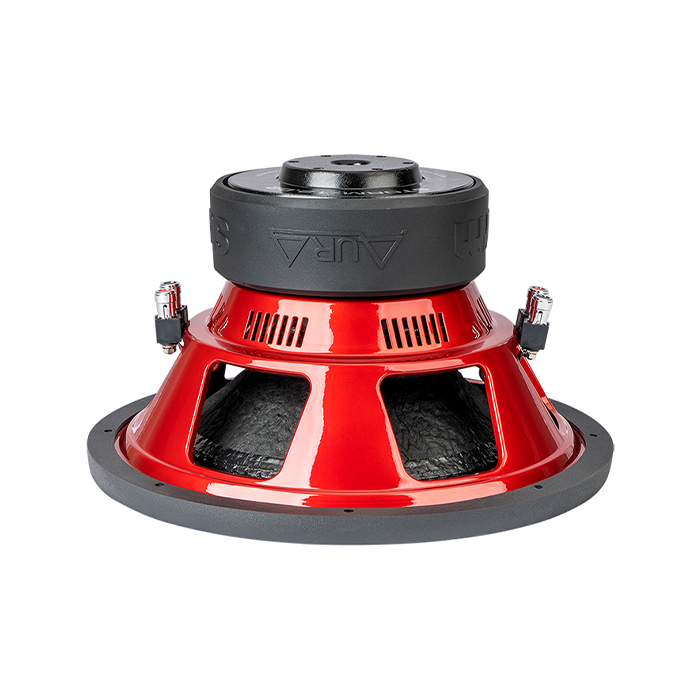

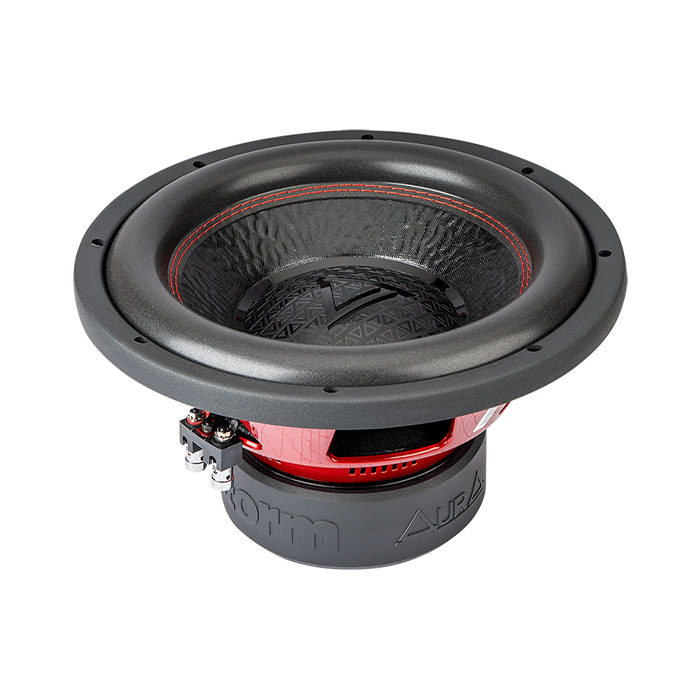

STORM-12.D2

STORM-12.D2

  • 12″ (30.8 cm)
  • Basket: stamped steel
  • Voice coil: 2.4″ (60 mm)
  • Lead wires: silver plated
  • Diffuser: unpressed cellulose
  • Power: 601 w / 1201 w
  • Resistance: 2×2Ω
  • Magnet weight: 100 Oz (2 .8 kg)
  • Sensitivity: 86.2 dB
  • Total quality factor (Qts): 0.545
  • Resonance frequency (FS): 38 Hz
  • EAN: 4680136862329

Weight 8.5 kg
Dimensions 0.23 × 0.35 × 0.35 m
diameter 12" (30.5cm)

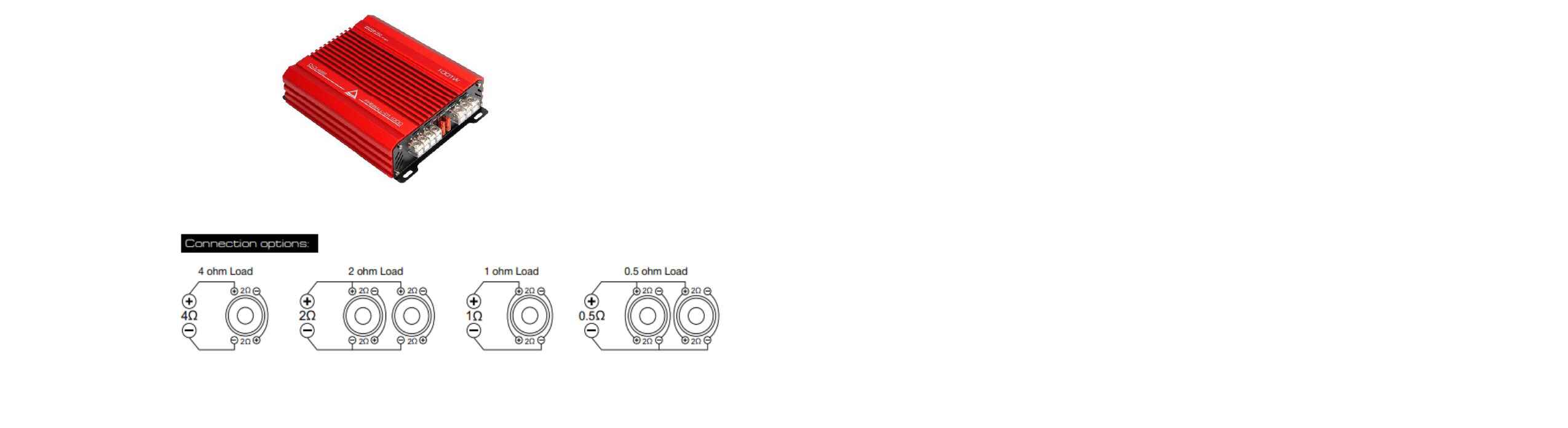

coil type 2+2 ohm
Name
Download

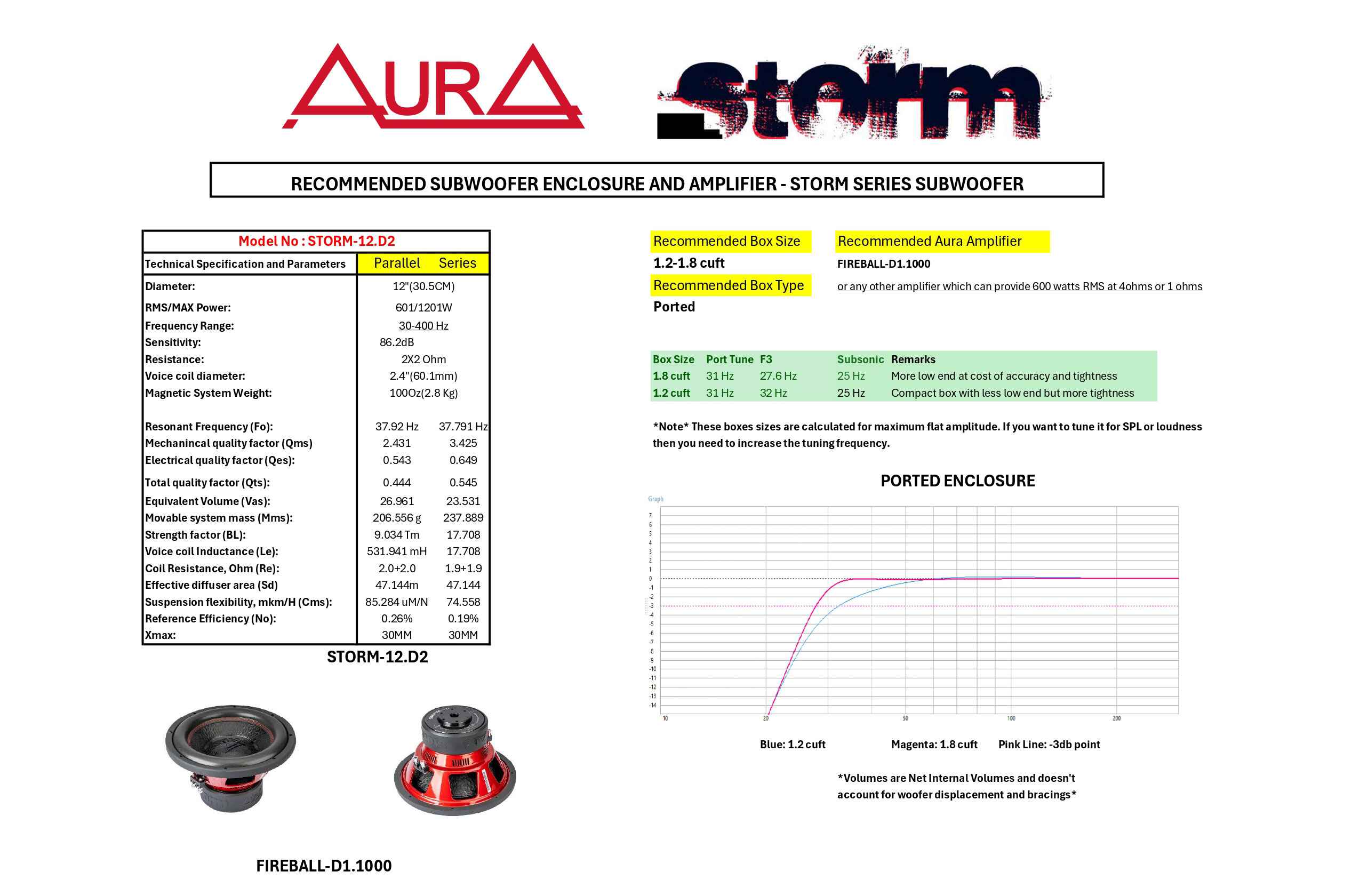

AURA STORM SUBWOOFER SUGGESTED ENCLOSURE
