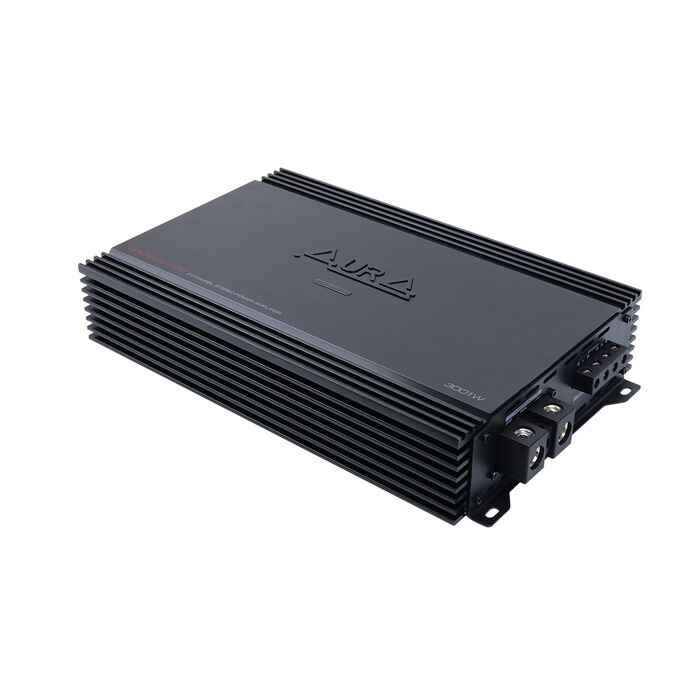

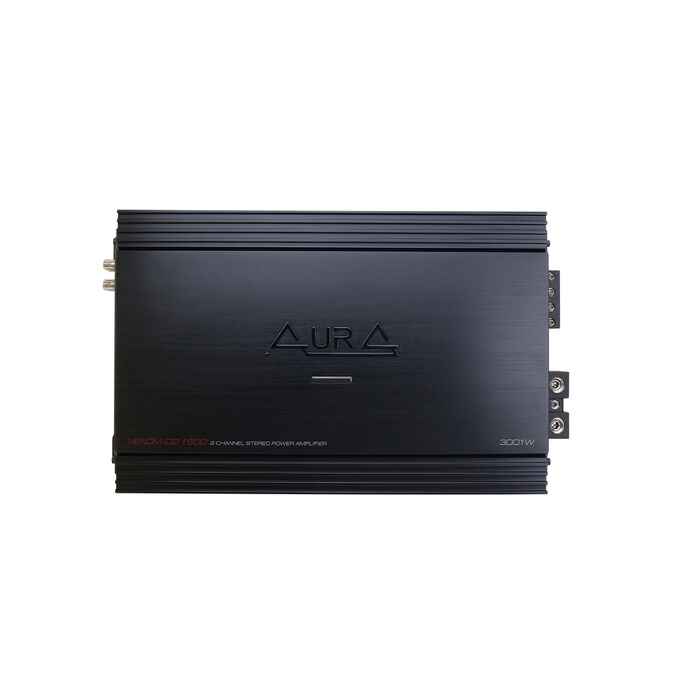

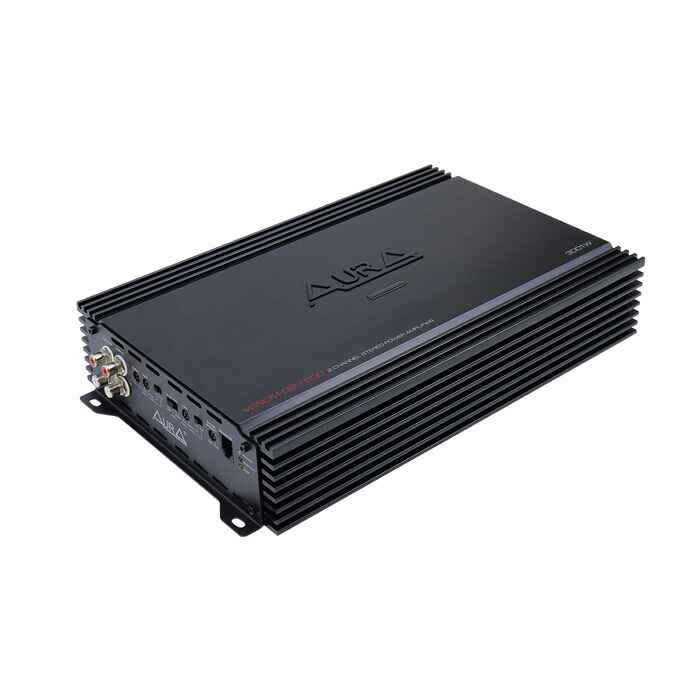

VENOM-D2.1500

VENOM-D2.1500

VENOM-D2.1500

  • 2-channel power amplifier.
  • Class D.
  • Rated Power 4Ω (RMS) W: 700 x 2
  • Rated Power 2Ω (RMS) W: 1100 x 2
  • Rated Power 1Ω (RMS) W: 1500 x 2
  • Rated Power (Bridge) 4Ω (RMS) ), W: 2200 x 1.
  • Rated power (bridge) 2Ω (RMS), W: 3000 x 1.
  • Input sensitivity: 6-0.25V.

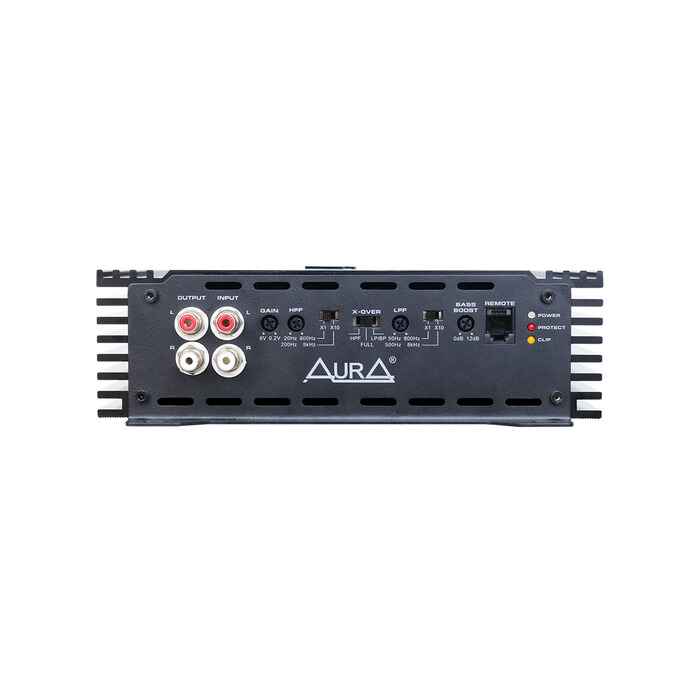

  • LPF (low-pass filter) filter: 50HZ-800Hz, 500Hz-8kHz (x10).
  • HPF filter: 20HZ-800Hz, 200Hz-8kHz (x10).
  • BAND PASS (BPF) filter.
  • Reproducible frequency range: 10Hz - 34kHz.
  • Signal to noise ratio: >90dB.
  • Total Harmonic Distortion: <0.15%.
  • Operating voltage: 9-16V.
  • External fuse rating: 100A (4Ω), 200A (2Ω), 300A (1Ω), 200A (4Ω bridge),
  • 350A (2Ω bridge).
  • Dimensions: 319 x 210 x 62 mm.

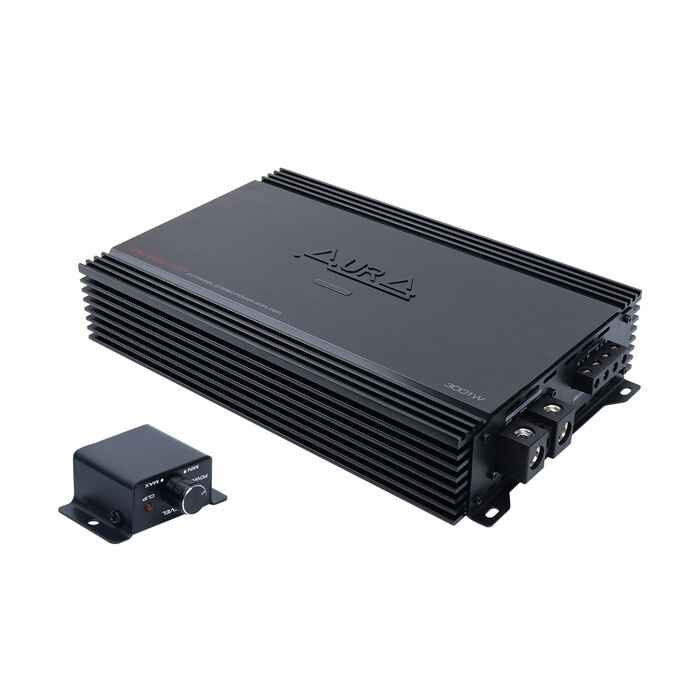

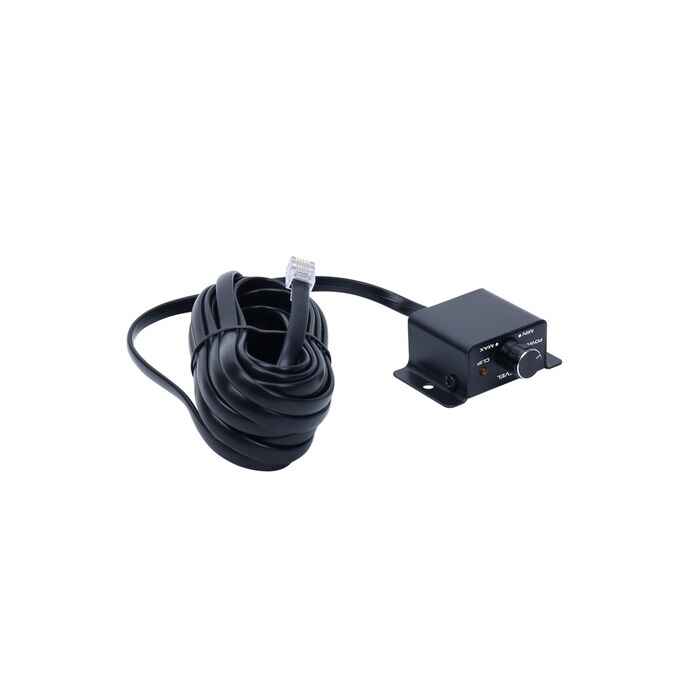

  • Remote control: included.
  • EAN: 4680136862015

FEATURES
  • HIGH SPEED MOSFET POWER SUPPLY
  • 12dB/OCT HIGH PASS FILTER
  • 12dB/OCT LOW PASS FILTER
  • BAND PASS CAPABLE
  • SURFACE MOUNT TECHNOLOGY
  • DOUBLE SIDED PRINTED CIRCUIT BOARD
  • 16db/12db SELECTABLE BASS BOOST

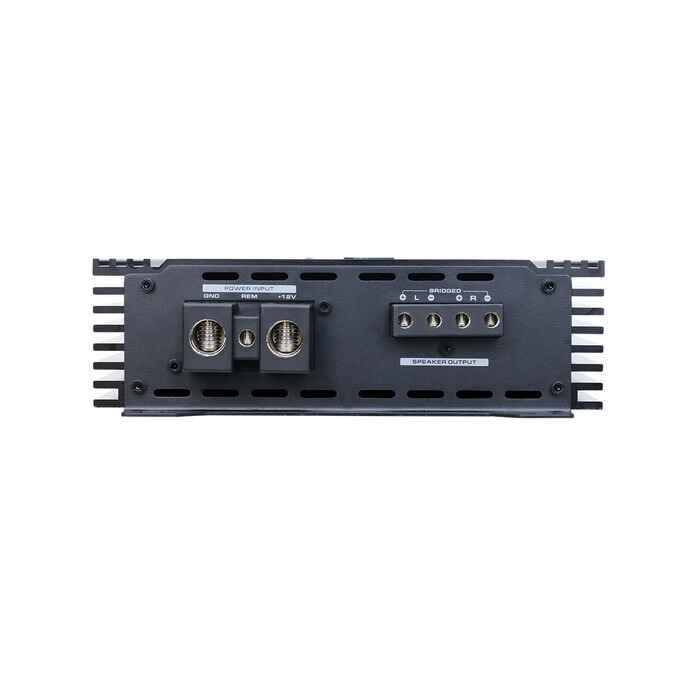

POWER CONNECTION
BATT (12V POWER)

Before mounting amplifiers, disconnect the negative cable from the battery to protect any accidential damage to your amplifiers and audio system. Connect the power cables to power terminal 12V. All AurA VENOM series amplifiers are not equipped with fuses so that external fuses should be used. Connect one end of fuse holder to the power cable going into the amplifiers and the other end of fuse holder to positive battery. This fuse location will protect the system and the vehicle against the possibility of a short circuit in the power cable. Be sure to use fuses and fuse holder adequate for the application.

GND (GROUND)

Locate a secure grounding connection as close to amplifier as possible. Make sure the location is clean and provides a direct electrical connection to the frame of the vehicle. The ground needs to have as low of a resistance as possible. Connect one end of a short piece of the same size cable as the power cable to the grounding point or to one of your batteries or battery bank. Run the other end of the ground cable to the mounting location of the amplifiers for connection to the amplifiers ground terminals and connect the ground cable to the GND (ground terminal).

REM (REMOTE)

Run a remote turn on cable from the switched 12V source . This may be a toggle switch, a relay, your source unit's remote trigger cables, or power antenna trigger cable. Connect the remote turn on cable to the REM (remote) terminal.

Trouble Shooting
  • AurA VENOM series amplifiers have protection features to prevent any damages from misuse or faulty conditions.
  • If VENOM series amplifiers sense excessive heat, short circuited speakers DC, or voltage the protection indicator will light, and the system will be turned off.
  • In order to check the problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short.
  • If AurA VENOM series amplifiers shuts down due to excessive heat, they will be working later when it is cooled down.
  • Before removing you amplfier, refer to the list below and follow the suggested procedures.
No Sound (No Output)
  • Please check all connections, cables routing, short & voltage.
  • Please check the fuses. If they are blown, please replace with new one.
  • Please check whether speakers work well, you can test speakers by connecting to another amplifier
Distortion & Noise
  • Readjust input level and check the speaker quality at another amplifier. Replace poor quality speakers with good quality ones.
  • Check amplifiers and headunit's ground contact. All grounds should be common.
  • Check RCA cable, then repalce with new one or reroute RCA cable.
  • Engine noise is caused by poor grounding of amplifiers, headunit, other components, battery or alternator, so please check all grounding connection.
Poor Bass Response
  • Please check speaker cables and reverse polarity.
Model VENOM-D2.1500
RMS power @ 4 ohm 700 x 2
RMS power @ 2 ohm 1100 x 2
RMS power @ 1 ohm 1500 x 2
RMS power @ 4 ohm mono 2200 x 1
RMS power @ 2 ohm mono 3000 x 1
Input Sensitivity 7 V - 0.25 V
High Pass Filter 50 Hz - 800 Hz,500Hz -1kHz(x10)
Low Pass Filter 20 Hz - 800 Hz,200Hz -1kHz(x10)
Frequency Response 10 Hz - 34 kHz
Signal to Noise Ratio >90 dB
THD @ 4ohm < 0.15%
Working voltage 9 V - 16 V
Fuse Rating 100A(4 Om),200A(2 Om),300A(1 Om),200A(4 Om bridged),350A(2 Om bridged)
Dimensions 319x210x62mm
